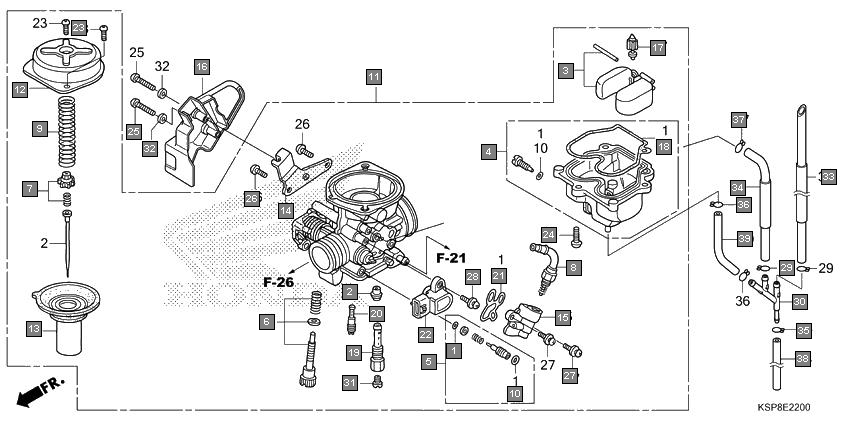

Motorcycles CB Unicorn CBF150MH Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KSP911 GASKET SET 1
2 16012KSPD01 NEEDLE SET, JET 1
3 16013KRC921 FLOAT SET 1
4 16015KSP911 CHAMBER SET, FLOAT 1
5 16016KSP911 SCREW SET A 1
6 16028KPP901 SCREW SET B 1
7 16037KPP861 PLATE SET, VALVE 1
8 16046KVC901 VALVE SET, STARTER 1
9 16050KSP911 SPRING, COMPRESSION COIL 1
10 16075KRP981 O-RING 2
11 16100KSPD01 CARBURETOR ASSY.(4FH A) 1
12 16107KGF911 TOP 1
13 16111KSP912 PISTON COMP., VACUUM 1
14 16119KSP911 STAY, WIRE 1
15 16140KTE911 BODY COMP., BYSTARTER 1
16 16150KSPD00 COVER, THROTTLE CABLE 1
17 16155KFR701 VALVE COMP., FLOAT 1
18 16163KRP981 GASKET, FLOAT CHAMBER 1
19 16165KSP911 HOLDER, NEEDLE JET 1
20 16180KGF911 JET, SLOW, #38 1
21 16423KGH901 GASKET, BYSTARTER 1
22 37890GET003 SENSOR ASSY., THROTTLE 1
23 93500040081H SCREW, PAN, 4X8 2
24 93500040120H SCREW, PAN, 4X12 3
25 93500040250G SCREW, PAN, 4X25 2
26 93500050121H SCREW, PAN, 5X12 2
27 938920501218 SCREW-WASHER, 5X12 2
28 938930501618 SCREW-WASHER, 5X16 1
29 16163GHB600 CLIP, TUBE 2
30 16180K63D30 JOINT, FOUR WAY 1
31 99101MAZ1150 JET, MAIN, #115 1
32 9410104700 WASHER, PLAIN, 4MM 2
33 16196KSPD00 TUBE, AIR VENT 1
34 16199KSPD00 TUBE, AIR VENT A 1
35 9500202079 CLIP, TUBE(B7) 1
36 9500202089 CLIP, TUBE(B8) 2
37 9500202100 CLIP, TUBE(B10) 1
38 950053531050 TUBE, 3.5X310(95005-35001-20M) 1
39 950054521050 TUBE, 4.5X210 1
