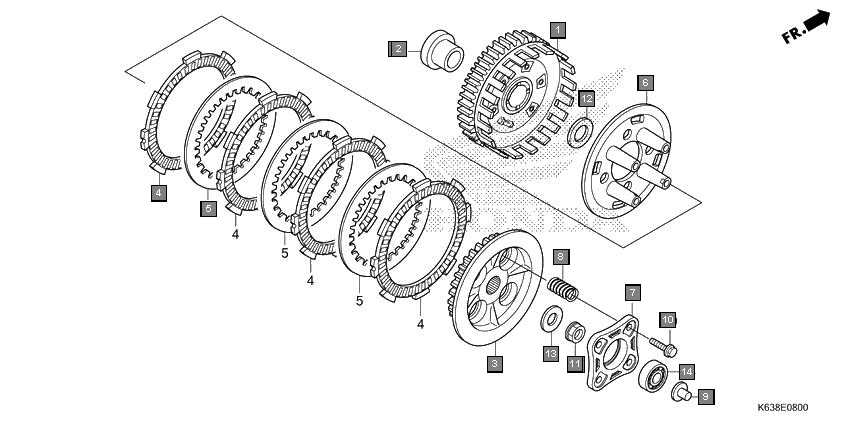

Motorcycles CD 110 Dream CB110C2MH Engine Clutch
Ref.No. Part No. Description Oty
1 22100K63D33 OUTER COMP., CLUTCH(67T) 1
2 22115KWS900 GUIDE, CLUTCH OUTER 1
3 22120K63D33 CENTER, CLUTCH 1
4 22201K63D33 DISK, CLUTCH FRICTION 4
5 22321K63D33 PLATE, CLUTCH 3
6 22355K63D33 PLATE, CLUTCH PRESSURE 1
7 22361K63D33 PLATE, CLUTCH LIFTER 1
8 22401K63D33 SPRING, CLUTCH 4
9 22847KCC900 ROD, CLUTCH LIFTER 1
10 90050K63D33 BOLT, SPECIAL FLANGE, 6X25 4
11 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
12 90403K63D33 WASHER, THRUST, 17MM 1
13 90432KPTA00 WASHER, 14.2X26X3 1
14 961006200000 BEARING, RADIAL BALL, 6200 1
