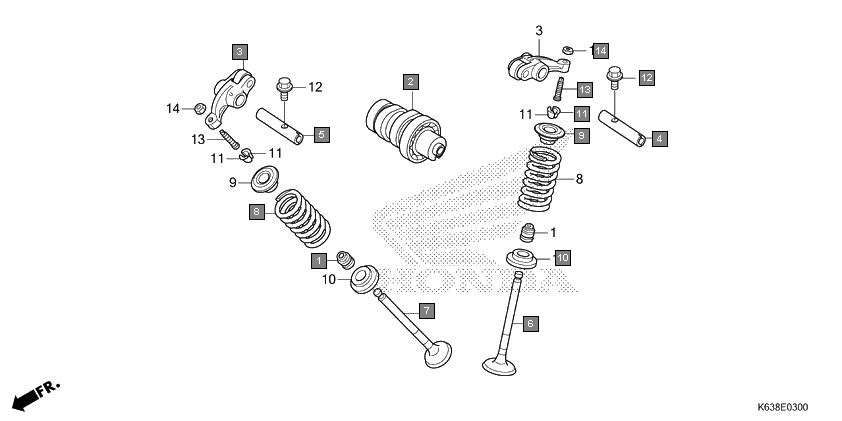

Motorcycles CD 110 Dream CB110C2MH Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 14100K23900 CAMSHAFT COMP. 1
3 14430KWP900 ARM COMP., IN. VALVE ROCKER 2
4 14451KYY900 SHAFT, IN. ROCKER ARM 1
5 14452KYY900 SHAFT, EX. ROCKER ARM 1
6 14711KWB600 VALVE, IN. 1
7 14721KVY900 VALVE, EX. 1
8 14751KWB600 SPRING, VALVE(NIPPON HATSUJO) 2
9 14771GB4680 RETAINER, VALVE SPRING 2
10 14775KWP900 SEAT, VALVE SPRING 2
11 14781MA6000 COTTER, VALVE 4
12 90002KRM840 BOLT, FLANGE, 5X14 2
13 90012KWW740 SCREW, TAPPET ADJUSTING 2
14 90206KPL900 NUT, TAPPET ADJUSTING 2
