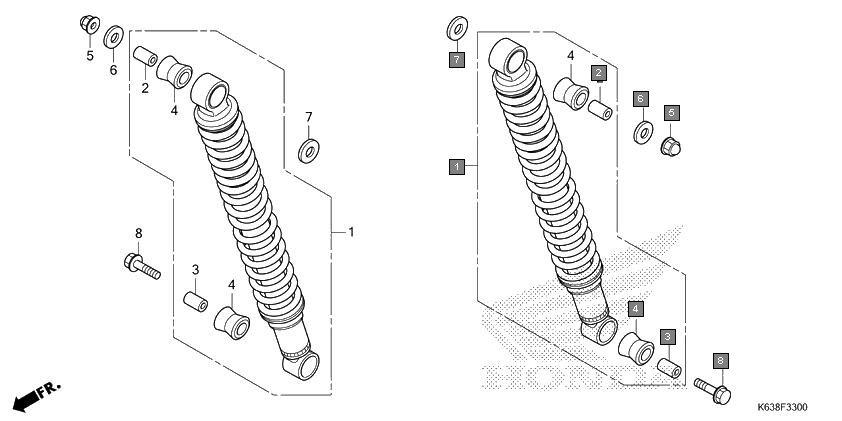

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 52400K63D33 | CUSHION ASSY., RR. | 2 |
2 | 52485K23902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 |
3 | 52486K23902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 |
4 | 52495K23902 | BUSH, RUBBER(ENDURANCE) | 4 |
5 | 90301K23900 | NUT, FLANGE CAP, 10MM | 2 |
6 | 90551KTE910 | WASHER, SPECIAL, 10MM | 2 |
7 | 9410112000 | WASHER, PLAIN, 12MM | 2 |
8 | 958011003500 | BOLT, FLANGE, 10X35 | 2 |
