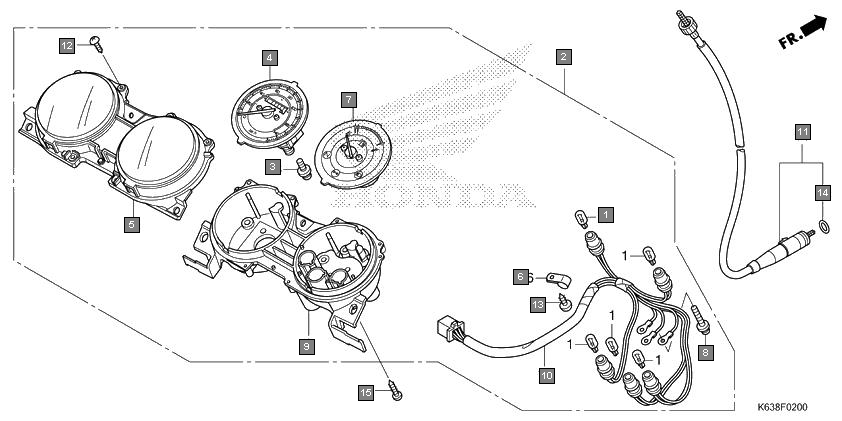

Motorcycles CD 110 Dream CB110C2H Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 5
2 37100K23902 METER ASSY., COMBINATION(KPH) 1
3 37205KWPD21 SCREW-WASHER, SPECIAL, 4X8 2
4 37210K23902 SPEEDOMETER COMP. 1
5 37211K23902 LENS 1
6 37215KWPD21 CLAMP 1
7 37300K23902 METER COMP., FUEL 1
8 37305KWPD21 SCREW, 3X22 3
9 37610K23902 CASE ASSY., UNDER 1
10 37619K23910 SOCKET COMP. 1
11 44830K14901 CABLE COMP., SPEEDOMETER 1
12 90101K23902 SCREW, TAPPING(3X13) 6
13 90109K23902 SCREW, TAPPING, 4X14 1
14 91256KK3840 O-RING, 10X1.5 1
15 9390335310 SCREW, TAPPING, 5X16 3
