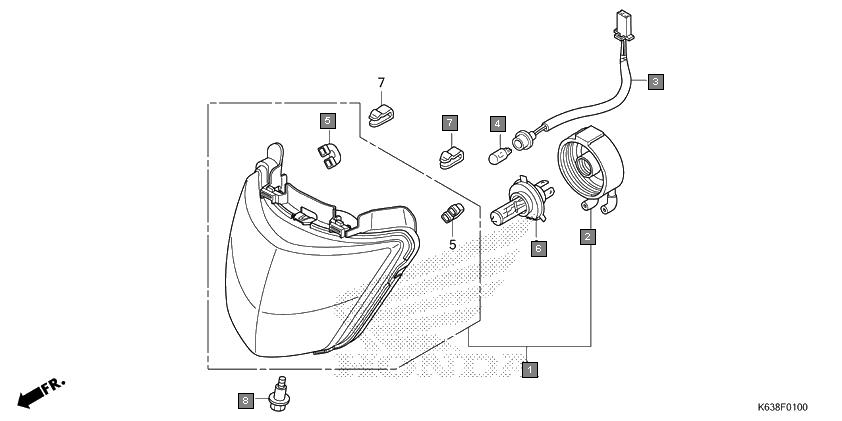

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33110K23901 | HEADLIGHT UNIT | 1 |
2 | 33112KWS901 | COVER, RUBBER | 1 |
3 | 33150K23901 | SUB CORD, HEADLIGHT | 1 |
4 | 33301KYJ901 | BULB, WEDGE BASE(T10 12V 5W) | 1 |
5 | 33706KWS901 | TUBE | 2 |
6 | 34901KVN971 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) | 1 |
7 | 53209GAH000 | CLIP, HEADLIGHT | 2 |
8 | 90101GJ6000 | BOLT, ADJUSTING | 1 |
