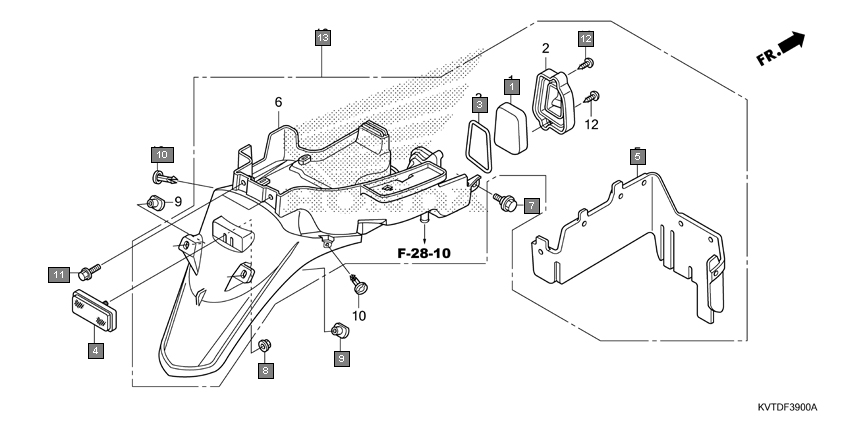

Scooters Aviator SCV110GFH Frame Rear fender
Ref.No. Part No. Description Oty
1 18805KVT900 ELEMENT, SUB AIR CLEANER 1
2 18807KVT900 COVER, SUB AIR CLEANER 1
3 18812KVT900 SEAL, SUB AIR CLEANER 1
4 33741KPL902 REFLECTOR, REFLEX 1
5 80104KPL900 PLATE, RR. FENDER SPLASH GUARD 1
6 80105KVT900ZA FENDER, RR. *NH1* BLACK 1
7 90111KPL900 BOLT, INNER COVER 1
8 90301KWN901 NUT, U, 5MM 1
9 90311KTE910 NUT, RR. FENDER 2
10 90683KPPN00 CLIP, TRIM 2
11 934040601207 BOLT-WASHER, 6X12 2
12 9390325480 SCREW, TAPPING, 5X20 2
