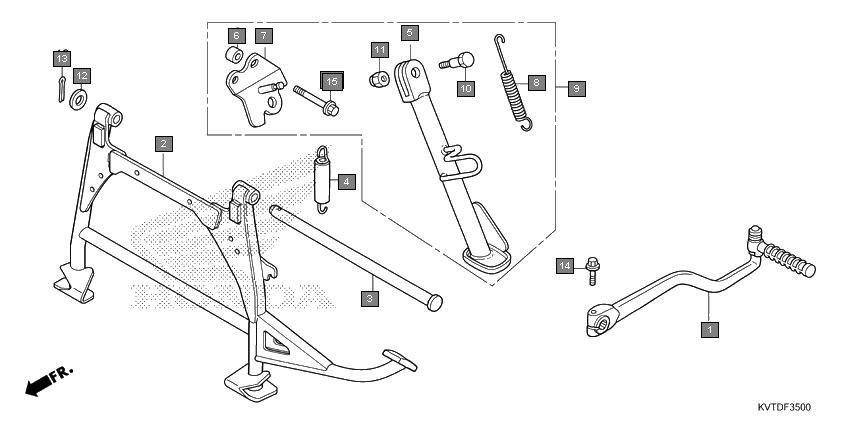

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 28300KVT900 | ARM ASSY., KICK STARTER | 1 |
| 2 | 50500KZKD00 | STAND COMP., MAIN | 1 |
| 3 | 50503GCC000 | SHAFT, MAIN STAND | 1 |
| 4 | 50505GCC000 | SPRING ASSY., MAIN STAND | 1 |
| 5 | 50530KVT900 | BAR COMP., SIDE STAND | 1 |
| 6 | 50532KWPD00 | COLLAR, SIDE STAND | 2 |
| 7 | 50535KWPD00 | BRACKET, SIDE STAND | 1 |
| 8 | 50536KPL900 | SPRING, SIDE STAND | 1 |
| 9 | 50560KVTD00 | STAND SET, SIDE | 1 |
| 10 | 90109KPL900 | BOLT, SIDE STAND PIVOT | 1 |
| 11 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 1 |
| 12 | 9410212000 | WASHER, PLAIN, 12MM | 1 |
| 13 | 9420125250 | PIN, SPLIT, 2.5X25 | 1 |
| 14 | 957010802507 | BOLT, FLANGE, 8X25 | 1 |
| 15 | 958011007007 | BOLT, FLANGE, 10X70 | 2 |
| 16 | 958021007007 | BOLT, FLANGE, 10X70 | 2 |
