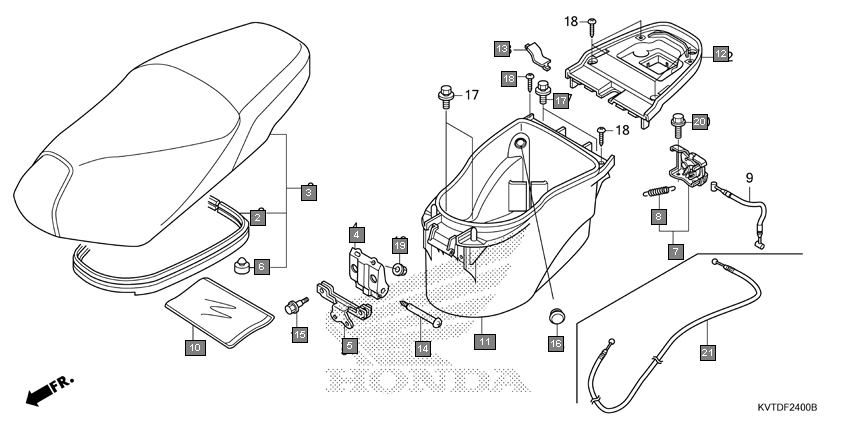

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 77115KVT900 | RUBBER, SEAL | 1 |
| 2 | 77200KVTG01ZA | SEAT COMP., DOUBLE *TYPE1* | 1 |
| 3 | 77201KVT900 | HINGE, SEAT | 1 |
| 4 | 77203KVT900 | STAY, HOOK LUGGAGE | 1 |
| 5 | 77206KG8900 | RUBBER, SEAT SETTING | 2 |
| 6 | 77235KVT900 | CATCH COMP., SEAT | 1 |
| 7 | 77236GBL000 | SPRING, SEAT CATCH | 1 |
| 8 | 77240KVT940 | CABLE, SEAT LOCK | 1 |
| 9 | 77251KPL900 | BAG, SERVICE BOOK | 1 |
| 10 | 81250KVTG00 | BOX, LUGGAGE | 1 |
| 11 | 81251KVT900 | COVER, FUEL TANK | 1 |
| 12 | 81255KVT940 | COVER, CARBURETOR MAINTENANCE | 1 |
| 13 | 90105KTP900 | PIN, HINGE | 1 |
| 14 | 90112KRP900 | BOLT, FLANGE, 6X18 | 2 |
| 15 | 90862KWPG00 | PLUG, END | 1 |
| 16 | 934040601207 | BOLT-WASHER, 6X12 | 4 |
| 17 | 9390325380 | SCREW, TAPPING, 5X16 | 6 |
| 18 | 9405006000 | NUT, FLANGE, 6MM | 2 |
| 19 | 957010601608 | BOLT, FLANGE, 6X16 | 2 |
