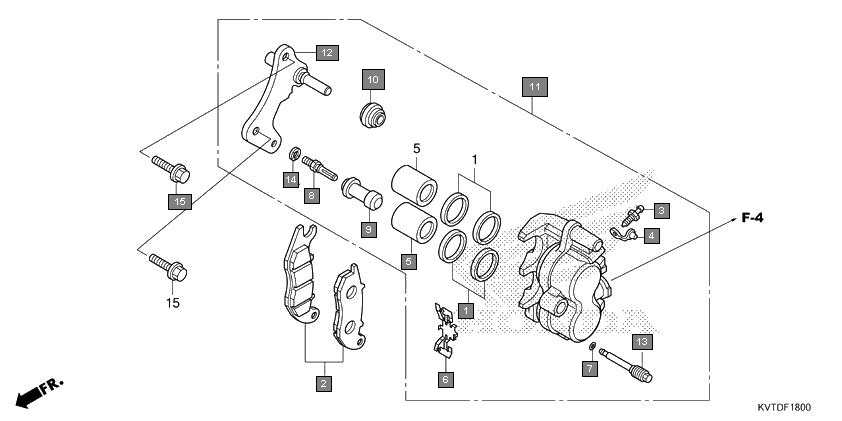

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06451GE2405 | SEAL SET, PISTON | 2 |
2 | 06455KVB912 | PAD SET, FR. BRAKE | 1 |
3 | 43352568003 | SCREW, BLEEDER(NISSIN) | 1 |
4 | 43353461771 | CAP, BLEEDER | 1 |
5 | 45107GE2006 | PISTON | 2 |
6 | 45108KPH951 | SPRING, PAD | 1 |
7 | 45111MAJG41 | RING, STOPPER | 1 |
8 | 45131GZ0006 | BOLT, PIN | 1 |
9 | 45132166016 | BOOT, PIN BUSH(NISSIN) | 1 |
10 | 45133MA3006 | BOOT B | 1 |
11 | 45150K24G11 | CALIPER SUB ASSY., L. FR. (NISSIN) | 1 |
12 | 45190K24G11 | BRACKET SUB ASSY., FR. CALIPER | 1 |
13 | 45215KPH951 | PIN, HANGER | 1 |
14 | 45216166006 | WASHER, WAVE | 1 |
15 | 90155KSP900 | BOLT, FLANGE, 8X25 | 2 |
