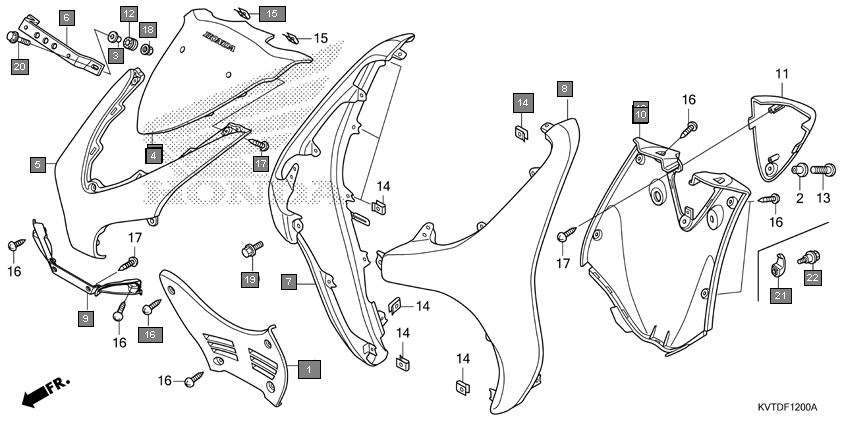

Scooters Aviator SCV110GFH Frame Front cover
Ref.No. Part No. Description Oty
1 50623KVTG00ZA COVER, FR. UNDER *NH1* BLACK 1
2 61103KRY900 COLLAR A, FR. FENDER 1
3 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
4 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
5 61104428000 COLLAR, FR. FENDER 2
6 64200KVTG00ZD COVER SET, FR. UPPER(WL) *TYPE1* 1
7 64200KVTG00ZA COVER SET, FR. UPPER(WL) *TYPE4* 1
8 64200KVTG00ZB COVER SET, FR. UPPER(WL) *TYPE3* 1
9 64200KVTG00ZC COVER SET, FR. UPPER(WL) *TYPE2* 1
10 64302KVT960 COVER, FR. LOWER *NHB07M* MAT EARL SILVER METALLIC 1
11 64303KVTF00 STAY, FR. NUMBER PLATE 1
12 64304KVTD00ZZ COVER COMP., R. FR. 1
13 64305KVTD00ZZ COVER COMP., L. FR. 1
14 64312KVTG00ZA LOUVER, FR. COVER *NH1* BLACK 1
15 81131KVTG10ZC COVER, INNER*NHB60M* MAT SELENE SILVER METALLIC 1
16 81131KVTG10ZA COVER, INNER *R329M* REBEL RED METALLIC 1
17 81131KVTG10ZD COVER, INNER*NHB05P* PEARL IGNEOUS BLACK 1
18 81131KVTG10ZB COVER, INNER*NHB63P* PEARL AMAZING WHITE 1
19 84703425000 RUBBER, TAILLIGHT MOUNTING 2
20 90113KVT901 BOLT, SPECIAL HEX., 6X20 1
21 90344KRB900 NUT, CLIP, 5MM 14
22 90344KRP900 NUT, CLIP, 5MM 2
23 9390325380 SCREW, TAPPING, 5X16 12
24 9390334320 SCREW, TAPPING, 4X12 5
25 9405006080 NUT, FLANGE, 6MM 2
26 957010601208 BOLT, FLANGE, 6X12 4
27 957010602507 BOLT, FLANGE, 6X25 2
