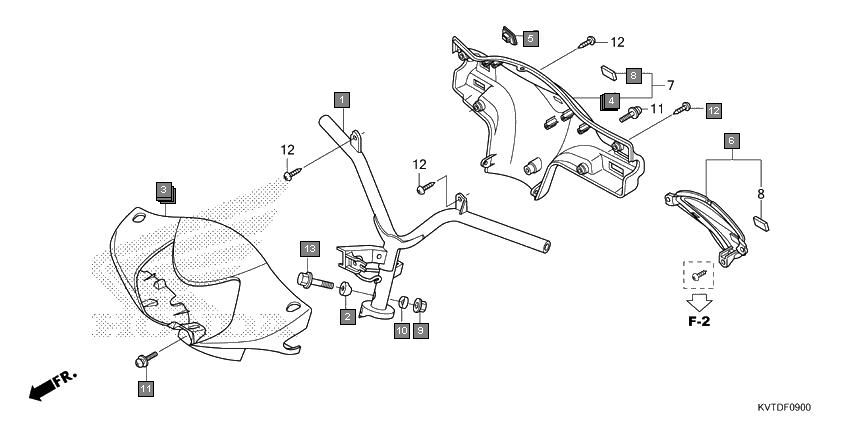

Scooters Aviator SCV110GFH Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100KVTG10 HANDLE COMP., STEERING 1
2 53124KWP900 COLLAR, HANDLE SETTING 1
3 53205KVTG10ZB COVER, FR. HANDLE*NHB63P* PEARL AMAZING WHITE 1
4 53205KVTG10ZD COVER, FR. HANDLE*NHB05P* PEARL IGNEOUS BLACK 1
5 53205KVTG10ZC COVER, FR. HANDLE*NHB60M* MAT SELENE SILVER METALLIC 1
6 53205KVTG10ZA COVER, FR. HANDLE*R329M* REBEL RED METALLIC 1
7 53206KVT960ZB COVER, HANDLE RR.*NHB05P* PEARL IGNEOUS BLACK 1
8 53206KVT960ZD COVER, HANDLE RR.*R329M* REBEL RED METALLIC 1
9 53206KVT960ZK COVER, HANDLE RR. *NHB63P* PEARL AMAZING WHITE 1
10 53206KVT960ZM COVER, HANDLE RR. *NHB60M* MAT SELENE SILVER METALLIC 1
11 53207K24G00 CAP, HEADLIGHT SWITCH 1
12 53208KVT970ZA COVER COMP., METER GARNISH *NH411M* FORCE SILVER METALLIC 1
13 86150KWS601 EMBLEM, PRODUCT(SJS) 1
14 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
15 90502KWP900 COLLAR B, HANDLE SETTING 1
16 938910501607 SCREW-WASHER, 5X16 2
17 9390334380 SCREW, TAPPING, 4X12 6
18 958011005508 BOLT, FLANGE, 10X55 1
