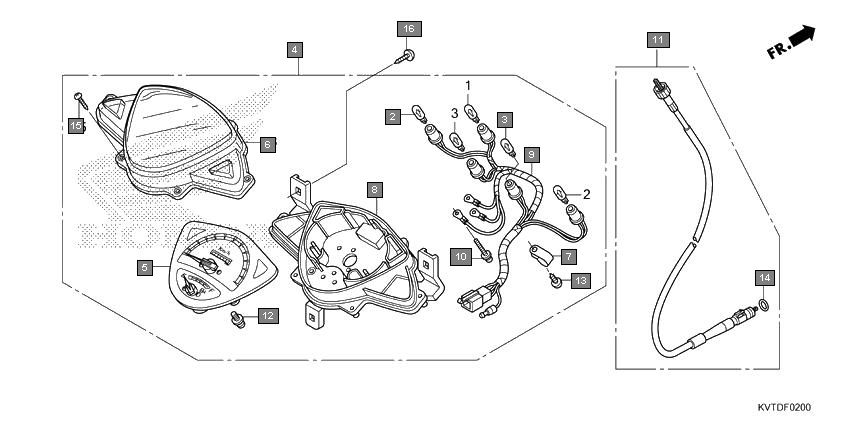

Scooters Aviator SCV110GFH Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 1
2 34909KVE900 BULB, WEDGE BASE(T10)(12V 3W) 2
3 34909KVH900 BULB, WEDGE BASE(T10 12V 3.4W) 2
4 37200KVTG01 SPEEDOMETER ASSY. 1
5 37210KVTG01 METER COMP., SPEED & FUEL 1
6 37211KVT901 LENS 1
7 37215KS3901 CLAMP 1
8 37220KVT901 CASE COMP. 1
9 37224KVTG01 SOCKET COMP. 1
10 37305KE5008 SCREW-WASHER, 3X22 3
11 44830KVT940 CABLE COMP., SPEEDOMETER 1
12 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
13 90109MZ5008 SCREW, TAPPING, 4X14 1
14 91352GAZ930 O-RING, 8.5X1.5 1
15 9390322420 SCREW, TAPPING, 3X16 6
16 9390325380 SCREW, TAPPING, 5X16 3
