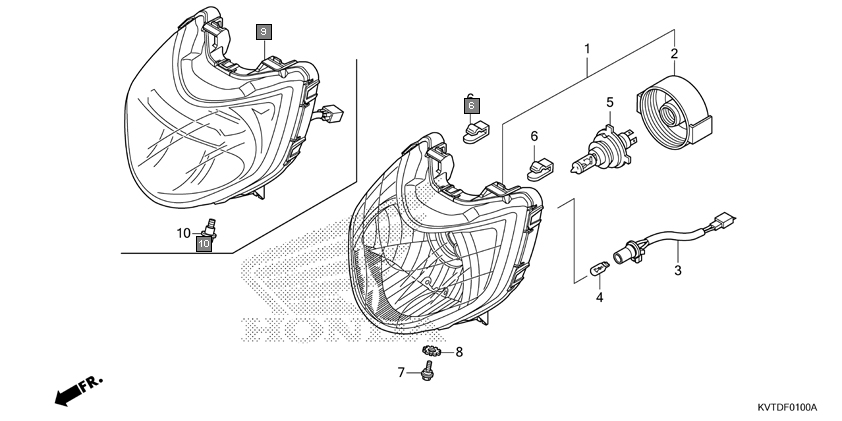

Scooters Aviator SCV110GFH Frame Headlight
Ref.No. Part No. Description Oty
1 33110KVTF01 HEADLIGHT UNIT 1
2 33126KTP890 COVER, RUBBER 1
3 33150KVTF01 SOCKET ASSY., POSITION LIGHT 1
4 33301SA0741 BULB(12V 5W)(STANLEY) 1
5 33301KVE900 BULB, WEDGE BASE(T10 12V 5W) 1
6 34901KTE740 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) 1
7 53209GAH000 CLIP, HEADLIGHT 2
8 90101KVT900 BOLT, ADJUSTER 1
9 90307GW3980 WASHER, LOCK, 6MM 1
