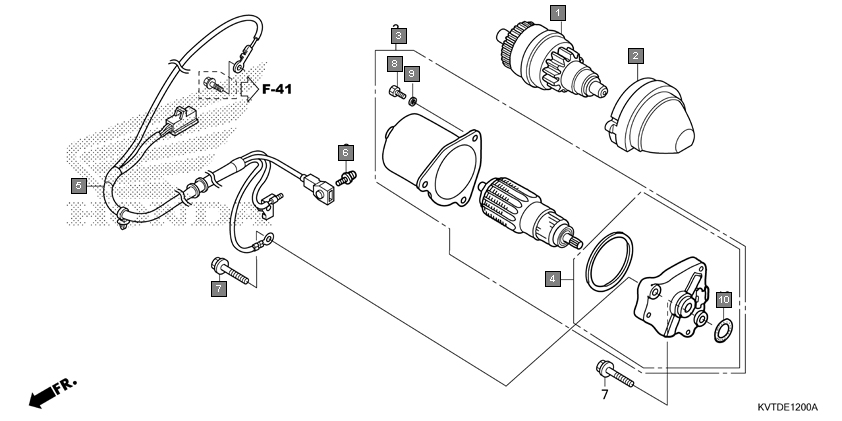

Scooters Aviator SCV110GFH Engine Starter motor
Ref.No. Part No. Description Oty
1 28120KVTG01 PINION ASSY., STARTER(14/40T) 1
2 28150KPL900 HOLDER COMP., STARTER PINION 1
3 31210KVTG01 MOTOR, STARTER 1
4 31214KVTG01 BRACKET ASSY., FR. 1
5 32105KVTG01 HARNESS COMP., STARTING MOTOR 1
6 938920400608 SCREW-WASHER, 4X6 1
7 960010603500 BOLT, FLANGE, 6X35 2
8 31207KVTG01 SCREW, HEX.(M5X15) 3
9 31208KVTG01 WASHER, SPRING(M5) 3
10 31309KVTG01 O-RING 1
