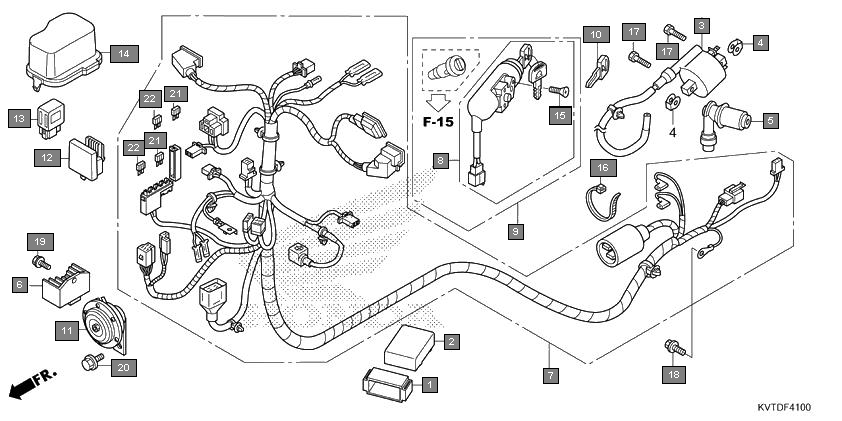

Scooters Aviator SCV110GH Frame Wire harness
Ref.No. Part No. Description Oty
1 30401KVE901 CUSHION, C.D.I. UNIT(DENSO) 1
2 30410KVTG01 C.D.I. UNIT 1
3 30500KVTD01 COIL ASSY., IGNITION 1
4 30520GFM900 SPACER, IGNITION COIL 2
5 30700KWP901 CAP ASSY., NOISE SUPPRESSOR(ANU) 1
6 31600KWPE02 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
7 32100KVTG00 HARNESS, WIRE 1
8 35012KVTD00 SWITCH ASSY. SET, COMBINATION & LOCK 1
9 35014KVTD00 KEY & SCREW SET 1
10 35121KPL841 KEY, BLANK 1
11 38110KVT901 HORN COMP. 1
12 38301KVTG01 RELAY COMP., WINKER 1
13 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
14 50325KWPD01 BOX, RELAY UPPER 1
15 90164KEE630 SCREW, FLAT, 6X12 2
16 90657KRP901 CABLE, TIE(LONG) 1
17 92101060204J BOLT, HEX., 6X20 2
18 957010601208 BOLT, FLANGE, 6X12 1
19 957010601600 BOLT, FLANGE, 6X16 1
20 957010801200 BOLT, FLANGE, 8X12 1
21 9820031000 FUSE, BLADE(10A) 2
22 9820031500 FUSE, BLADE(15A) 2
23 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
