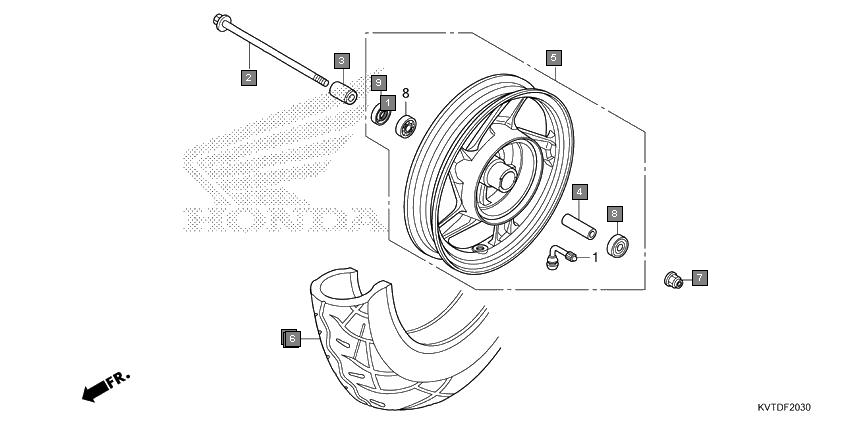

Scooters Aviator SCV110GH Frame Front wheel(scv110g-2id,id)
Ref.No. Part No. Description Oty
1 42753KWPE01 VALVE, RIM(TRITON) 1
2 44301KTR700 AXLE, FR. WHEEL 1
3 44311KVT900 COLLAR, FR. WHEEL SIDE 1
4 44620KPL900 COLLAR, FR. AXLE DISTANCE 1
5 44650KVTG00 WHEEL SUB ASSY., FR. 1
6 44711K74N01 TIRE, FR.(CEAT)(90/90-12 54J) 1
7 44711KVTD01 TIRE, FR.(MRF)(90/90-12 54J) 1
8 44711KVTD02 TIRE, FR.(TVS)(90/90-12 54J) 1
9 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
10 90912KPL900 BEARING, RADIAL BALL, 6201U 2
11 91251KWP901 DUST SEAL, 20X32X5 1
