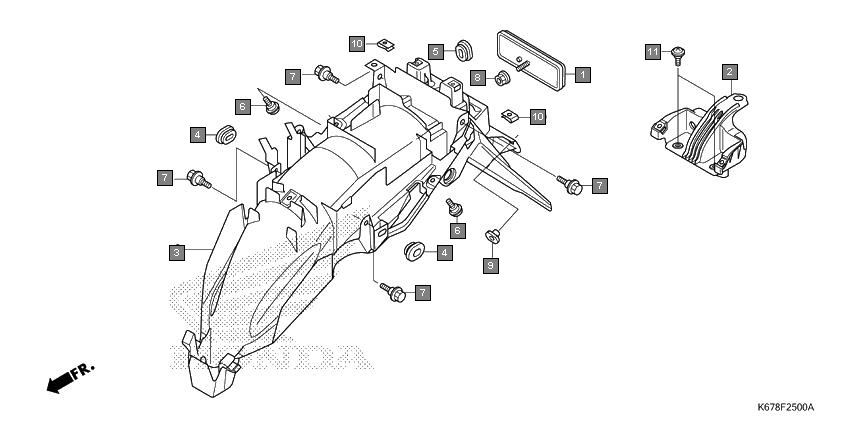

Motorcycles CB Shine SP CBF125MH Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 77235K67900 STAY, TAILLIGHT 1
3 80101K67900 FENDER, RR. 1
4 83551GE2000 GROMMET, AIR CLEANER CASE 2
5 83551KWS900 GROMMET, TAILLIGHT 1
6 90101GE0000 SCREW, HINGE PATCH 2
7 90111162000 BOLT, FLANGE, 6MM 4
8 90301KWN901 NUT, U, 5MM 1
9 90311KTE910 NUT, RR. FENDER 2
10 90320GC3000 NUT, SPRING, 5MM 2
11 91509GE2760 SCREW, PAN, 5X11.5 2
