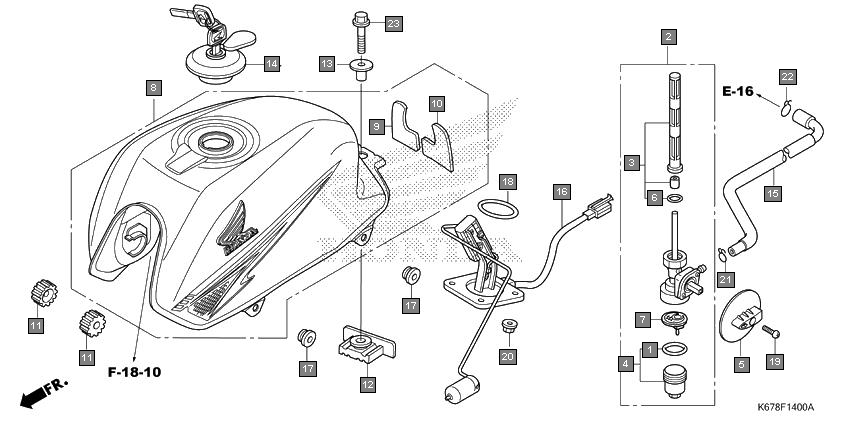

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16173001004 | PACKING, FUEL STRAINER CUP | 1 |
| 2 | 16950K67901 | COCK ASSY., FUEL | 1 |
| 3 | 16952K67901 | SCREEN SET, FUEL STRAINER | 1 |
| 4 | 16953KWF900 | CUP SET, FUEL STRAINER | 1 |
| 5 | 16955K67900 | LEVER, FUEL COCK | 1 |
| 6 | 16958397771 | O-RING, 9.0X1.3 | 1 |
| 7 | 16959471831 | FILTER, CUP | 1 |
| 8 | 17500K67930ZE | TANK ASSY., FUEL(WL)*TYPE2* | 1 |
| 9 | 17500K67930ZF | TANK ASSY., FUEL(WL)*TYPE1* | 1 |
| 10 | 17500K67930ZA | TANK ASSY., FUEL(WL)*TYPE6* | 1 |
| 11 | 17500K67930ZB | TANK ASSY., FUEL(WL)*TYPE5* | 1 |
| 12 | 17500K67930ZD | TANK ASSY., FUEL(WL)*TYPE3* | 1 |
| 13 | 17500K67930ZC | TANK ASSY., FUEL(WL)*TYPE4* | 1 |
| 14 | 17506K67900 | FILM, R. TANK PROTECTOR | 1 |
| 15 | 17507K67900 | FILM, L. TANK PROTECTOR | 1 |
| 16 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
| 17 | 17613KTE910 | RUBBER, FUEL TANK RR. | 1 |
| 18 | 17614KR3000 | COLLAR, FUEL TANK MOUNTING | 1 |
| 19 | 17620KTED01 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 |
| 20 | 17681KTE650 | TUBE, FUEL | 1 |
| 21 | 37800K67931 | FUEL UNIT ASSY. | 1 |
| 22 | 83551376000 | GROMMET, SIDE COVER | 4 |
| 23 | 91305443740 | O-RING, 39.5X5 | 1 |
| 24 | 93500040120G | SCREW, PAN, 4X12 | 1 |
| 25 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 26 | 90652KWPF00 | CLIP, TUBE(B8) | 1 |
| 27 | 9500250000 | CLIP, TUBE(C9) | 1 |
| 28 | 957010802800 | BOLT, FLANGE, 8X28 | 1 |
