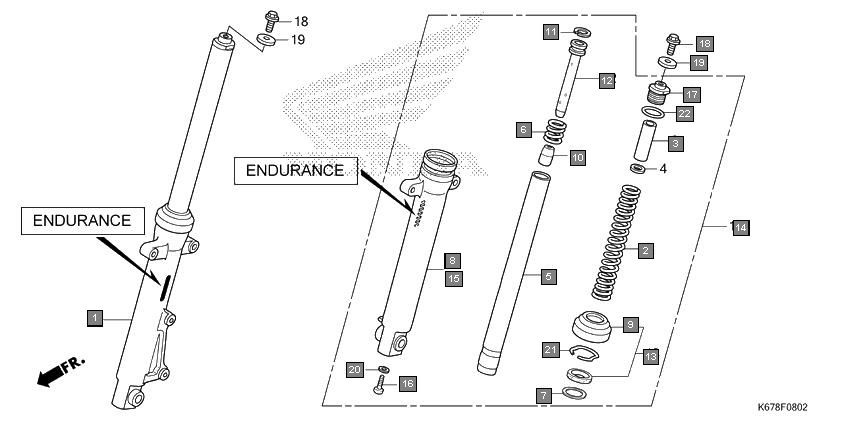

Motorcycles CB Shine SP CBF125MH Frame Front fork(endurance)(disk brake)
Ref.No. Part No. Description Oty
1 51400KTE672 FORK ASSY., R. FR.(ETPL) 1
2 51400KTE613 FORK ASSY., R. FR.(ETPL) 1
3 51401KTE602 SPRING, FR. FORK(ETPL) 2
4 51403KTE602 COLLAR, OIL LOCK(ETPL) 2
5 51404K23902 JOINT, SPRING 2
6 51410KTE602 PIPE COMP., FR. FORK(ETPL) 2
7 51412K23902 SPRING, REBOUND 2
8 51413K23902 RING, BACK UP 2
9 51420KTE612 CASE, R. FR. BOTTOM(ETPL) 1
10 51420KTE672 CASE, R. FR. BOTTOM(ETPL) 1
11 51425KTE602 SEAL, DUST(ETPL) 2
12 51432KTE672 PIECE, OIL LOCK(ETPL) 2
13 51437K23902 RING, PISTON 2
14 51440KTE602 PIPE, SEAT(ETPL) 2
15 51490KTE602 SEAL SET, FR. FORK(ETPL) 2
16 51500KTE672 FORK ASSY., L. FR.(ETPL) 1
17 51500KTE613 FORK ASSY., L. FR.(ETPL) 1
18 51520KTE612 CASE, L. FR. BOTTOM(ETPL) 1
19 90116K23902 BOLT, SOCKET, 8MM 2
20 90123K23902 BOLT A, FR. FORK 2
21 90123KRM860 BOLT, FR. FORK 2
22 90521KSP900 WASHER, 10.3MM 2
23 90544K23902 WASHER, SPECIAL, 8MM 2
24 90651K23902 RING, OIL SEAL STOP 2
25 91351K23902 O-RING 2
