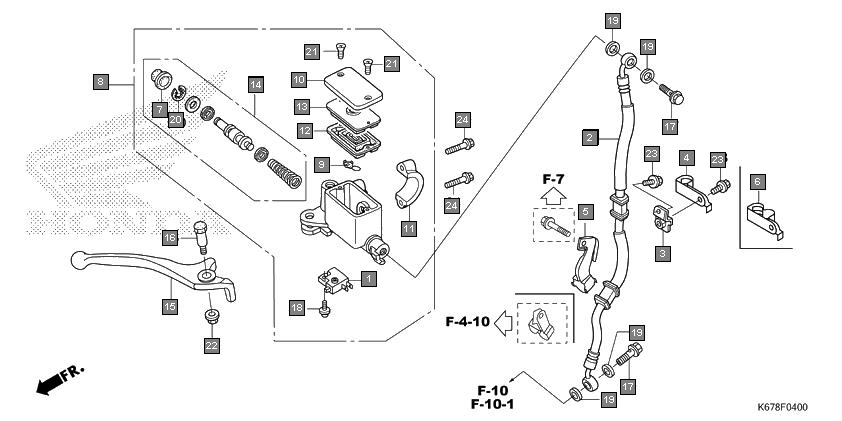

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 35340KSPB51 | SWITCH ASSY., FR. STOP | 1 |
2 | 45126K67951 | HOSE COMP. A, FR. BRAKE | 1 |
3 | 45126K67941 | HOSE COMP., FR. BRAKE | 1 |
4 | 45155KTE670 | STAY, BRAKE HOSE CLAMPER | 1 |
5 | 45156K67910 | CLAMPER A, FR. BRAKE HOSE | 1 |
6 | 45156KSP900 | CLAMPER B, FR. BRAKE HOSE | 1 |
7 | 45156KTE670 | CLAMPER A, FR. BRAKE HOSE | 1 |
8 | 45504410003 | BOOT COMP. | 1 |
9 | 45510K21921 | CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) | 1 |
10 | 45510KSPB52 | CYLINDER SUB ASSY., FR. BRAKE MASTER | 1 |
11 | 45512MA6006 | PROTECTOR | 1 |
12 | 45513HA2006 | CAP, MASTER CYLINDER | 1 |
13 | 45517166006 | HOLDER, MASTER CYLINDER | 1 |
14 | 45520GE2006 | DIAPHRAGM | 1 |
15 | 45521K21901 | PLATE, DIAPHRAGM | 1 |
16 | 45530KVY911 | CYLINDER SET, MASTER | 1 |
17 | 45530471831 | CYLINDER SET, MASTER | 1 |
18 | 53175KET921 | LEVER, R. STEERING HANDLE | 1 |
19 | 90114KGH900 | BOLT, HANDLE LEVER PIVOT | 1 |
20 | 90145GW3981 | BOLT, OIL, 10X22 | 2 |
21 | 938930401217 | SCREW-WASHER, 4X12 | 1 |
22 | 90508K21921 | SCREW-WASHER, 4X12 | 1 |
23 | 90545300000 | WASHER, OIL BOLT | 4 |
24 | 90651MA5671 | CIRCLIP | 1 |
25 | 93600040121G | SCREW, FLAT, 4X12 | 2 |
26 | 9405006000 | NUT, FLANGE, 6MM | 1 |
27 | 960010601400 | BOLT, FLANGE, 6X14 | 2 |
28 | 960010602207 | BOLT, FLANGE, 6X22 | 2 |
