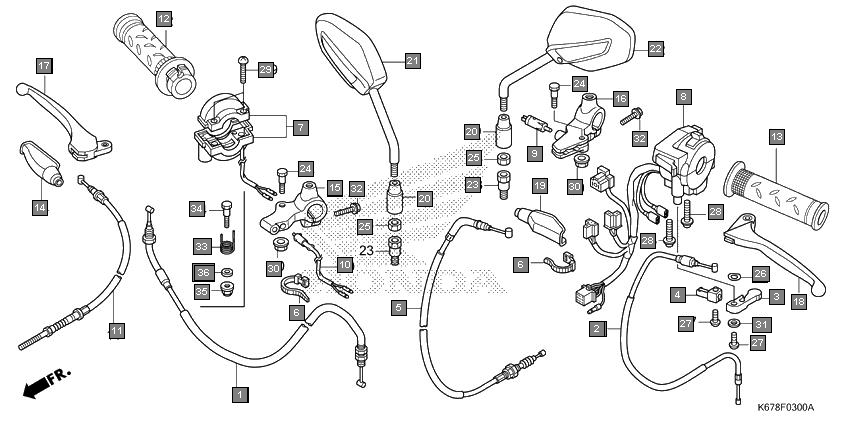

Motorcycles CB Shine SP CBF125MH Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KTE651 CABLE COMP., THROTTLE 1
2 17950KTE650 CABLE COMP., CHOKE 1
3 17961KTE911 LEVER, CHOKE 1
4 17962KTE910 STOPPER, CABLE 1
5 22870KTE910 CABLE COMP., CLUTCH 1
6 32161KSP920 BAND B1, WIRE 2
7 35150KTE601 SWITCH ASSY., STARTER 1
8 35200K67931 SWITCH ASSY., WINKER 1
9 35330KEJ900 SWITCH COMP., FR. LEVER 1
10 35340KTE601 SWITCH ASSY., FR. STOP 1
11 45450KTED02 CABLE COMP., FR. BRAKE 1
12 53140K38940 GRIP COMP., THROTTLE 1
13 53166KSPA70 GRIP, L. HANDLE 1
14 53171KCC900 COVER, R. HANDLE LEVER 1
15 53171KTEA00 BRACKET, R. HANDLE LEVER 1
16 53172KTE930 BRACKET, L. HANDLE LEVER 1
17 53175KTEA00 LEVER COMP., R. HANDLE 1
18 53178KTEA00 LEVER COMP., L. HANDLE 1
19 53179KTC900 COVER, L. HANDLE LEVER 1
20 88114198D10 CAP, LOCK NUT 2
21 88210K38941ZA MIRROR COMP., R.*NH1* BLACK 1
22 88220K38941ZA MIRROR COMP., L. *NH1*BLACK 1
23 90103K38940 BOLT, ADAPTER, 10MM 2
24 90114428870 BOLT, HANDLE LEVER PIVOT 1
25 90114428870 BOLT, HANDLE LEVER PIVOT 2
26 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
27 90442147000 WASHER, WAVE 1
28 93500050100A SCREW, PAN, 5X10 2
29 93500050200G SCREW, PAN, 5X20 2
30 93500050220G SCREW, PAN, 5X22 2
31 9405006000 NUT, FLANGE, 6MM 1
32 9405006000 NUT, FLANGE, 6MM 2
33 9410305000 WASHER, PLAIN, 5MM 1
34 960010602507 BOLT, FLANGE, 6X25 2
35 960010602507 BOLT, FLANGE, 6X25 1
