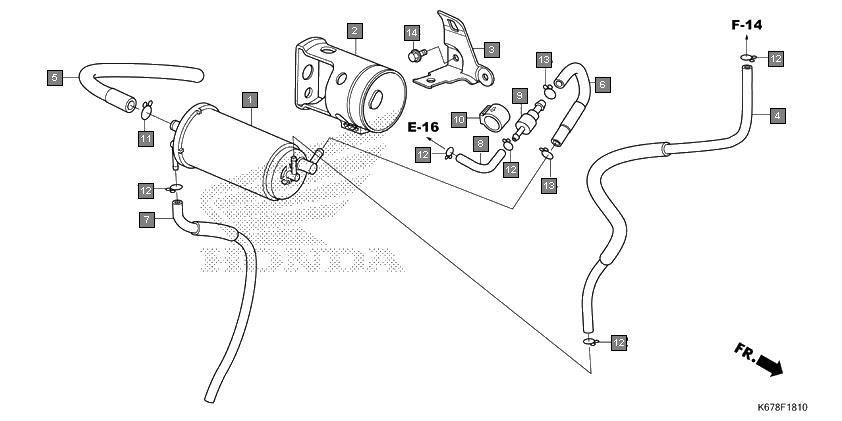

Motorcycles CB Shine SP CBF125MH Frame Canister
Ref.No. Part No. Description Oty
1 17310KTED01 CANISTER COMP. 1
2 17311KTED00 RUBBER, CANISTER 1
3 17315KTED00 STAY, CANISTER 1
4 17411KTED00 TUBE, CHARGE 1
5 17412KTED00 TUBE, AIR 1
6 17413KTED00 TUBE, CANISTER PURGE 1
7 17414KTED00 TUBE, DRAIN 1
8 17415KTED00 TUBE, CANISTER PURGE 1
9 17440K43901 VALVE, ONE WAY 1
10 17441K43900 RUBBER, ONE WAY VALVE 1
11 90652MB1000 CLIP, TUBE 1
12 9500202089 CLIP, TUBE(B8) 5
13 9500202139 CLIP, TUBE(B12.5) 2
14 957010601200 BOLT, FLANGE, 6X12 2
