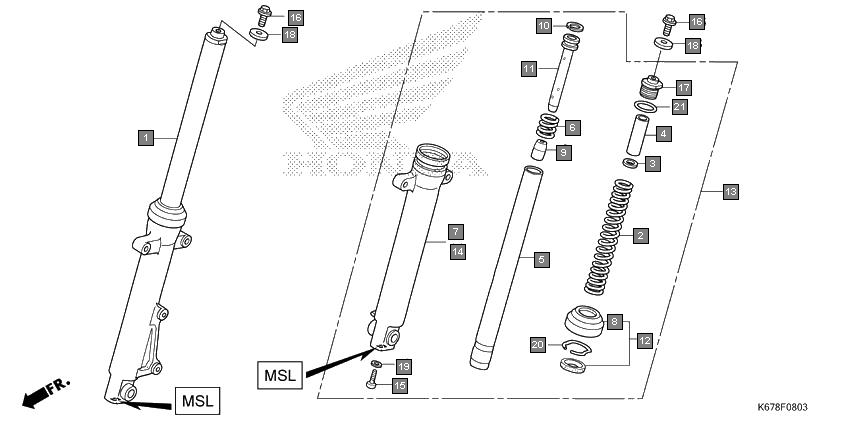

Motorcycles CB Shine SP CBF125MH Frame Front fork(munjal showa)(disk brake)
Ref.No. Part No. Description Oty
1 51400KTEA12 FORK ASSY., R. FR.(SHOWA) 1
2 51401KTEA01 SPRING, FR. FORK 2
3 51403447731 PLATE, SPRING JOINT(SHOWA) 2
4 51403KCC901 COLLAR, SPRING(SHOWA) 2
5 51410KTEA01 PIPE COMP., FR. FORK 2
6 51412KAG901 SPRING, REBOUND(SHOWA) 2
7 51420KTEA12 CASE, R. FR. BOTTOM 1
8 51425KST901 SEAL, DUST 2
9 51432KST901 PIECE, OIL LOCK 2
10 51437KTC901 RING, PISTON 2
11 51440KTE911 PIPE, SEAT 2
12 51490KST305 SEAL SET, FR. FORK 2
13 51500KTEA12 FORK ASSY., L. FR.(SHOWA) 1
14 51520KTEA12 CASE, L. FR. BOTTOM 1
15 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
16 90123KRM860 BOLT, FR. FORK 2
17 90123KSP901 BOLT A, FR. FORK 2
18 90521KSP900 WASHER, 10.3MM 2
19 90544439930 PACKING(SHOWA) 2
20 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
21 91356KAG901 O-RING(SHOWA) 2
