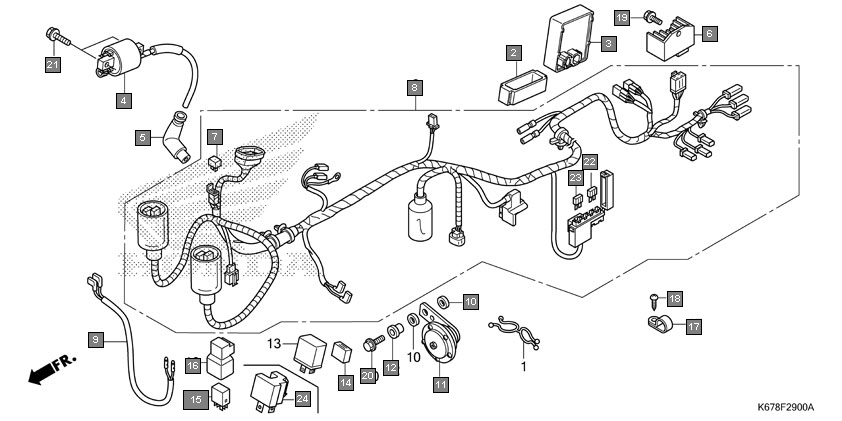

Motorcycles CB Shine SP CBF125MH Frame Wire harness
Ref.No. Part No. Description Oty
1 30401KWPD21 CUSHION, C.D.I. UNIT (SHINDENGEN) 1
2 30410K67931 C.D.I. UNIT COMP., DIGITAL(DC) 1
3 30500KTE601 COIL ASSY., IGNITION(ANU) 1
4 30700KTED02 CAP ASSY., NOISE SUPPRESSOR (ANU) 1
5 31600KTED01 RECTIFIER COMP., REGULATOR 1
6 31700124008 RECTIFIER ASSY., SILICON(SHINDENGEN) 1
7 32100K67930 HARNESS, WIRE 1
8 32102KTE600 SUB CORD 1
9 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
10 38110KWF952 HORN COMP. 1
11 38117KFE701 COLLAR, HORN SETTING 1
12 38306K38901 SUSPENSION, WINKER RELAY (STAR ENGINEERS) 1
13 38502KWA931 RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) 1
14 38506KSP910 SUSPENSION, POWER RELAY 1
15 90672KTE650 CLIP(17) 1
16 9390324320 SCREW, TAPPING, 4X12 1
17 957010601400 BOLT, FLANGE, 6X14 1
18 957010602008 BOLT, FLANGE, 6X20 1
19 960010602000 BOLT, FLANGE, 6X20 2
20 9820031000 FUSE, BLADE(10A) 2
21 9820031500 FUSE, BLADE(15A) 2
22 38301K63D21 RELAY COMP., WINKER (STAR ENGINEERS) 1
