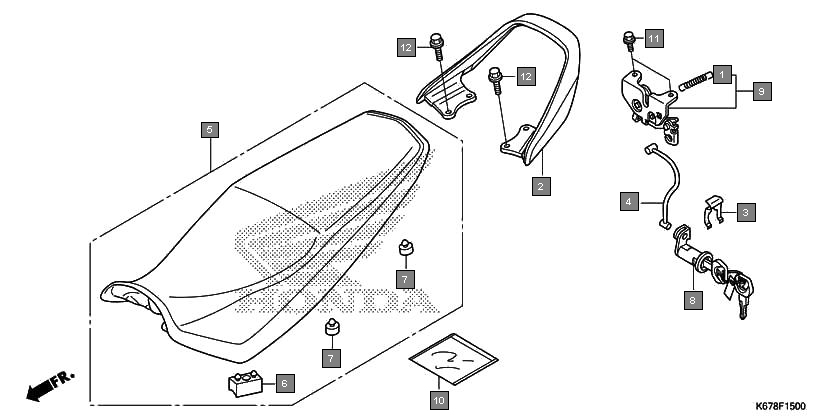

Motorcycles CB Shine SP CBF125MH Frame Seat
Ref.No. Part No. Description Oty
1 16574ZG8300 SPRING, LEVER 1
2 50400K67900 GRIP, RR. 1
3 75581GN8920 SPRING, LOCK KEY SETTING 1
4 77156KTE910 CABLE, SEAT LOCK 1
5 77200K67902ZA SEAT ASSY., DOUBLE *TYPE1* 1
6 77204KCC900 RUBBER A, SEAT SETTING 2
7 77206KTE910 RUBBER, SEAT SETTING 6
8 77225KTE911 LOCK ASSY., SEAT 1
9 77235KTE910 CATCH COMP., SEAT 1
10 77251KPL900 BAG, SERVICE BOOK 1
11 957010601200 BOLT, FLANGE, 6X12 2
12 957010802000 BOLT, FLANGE, 8X20 4
