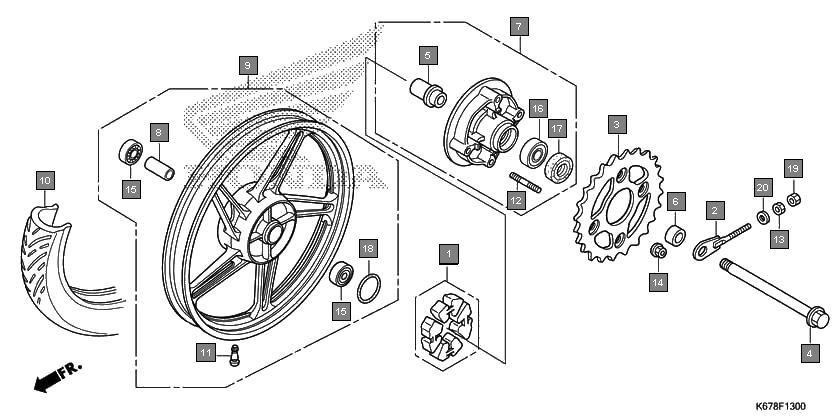

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410K67900 | DAMPER SET, WHEEL | 1 |
| 2 | 40543KTE910 | ADJUSTER COMP., R. CHAIN | 1 |
| 3 | 41201K14900 | SPROCKET, FINAL DRIVEN(41T) | 1 |
| 4 | 42301KTEA00 | AXLE, RR. WHEEL | 1 |
| 5 | 42303KWF950 | SLEEVE, RR. WHEEL | 1 |
| 6 | 42304KTEA00 | COLLAR, RR. AXLE SLEEVE | 1 |
| 7 | 42615K67930 | FLANGE SUB ASSY., FINAL DRIVEN | 1 |
| 8 | 42620KTE950 | COLLAR, RR. AXLE DISTANCE | 1 |
| 9 | 42650K67930ZA | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 10 | 42711K67942 | TIRE, RR.(TVS) (80/100-18 M/C 54P) | 1 |
| 11 | 42711K67931 | TIRE, RR.(MRF) (80/100-18 M/C 54P) | 1 |
| 12 | 42753K24G11 | VALVE, RIM(ACCURA) | 1 |
| 13 | 42753KWF901 | VALVE, RIM(TRITON) | 1 |
| 14 | 90128KTE910 | BOLT, STUD, 8X20 | 4 |
| 15 | 90302KBP900 | NUT, SPECIAL, 6MM | 1 |
| 16 | 90309KTE911 | NUT, FLANGE SPECIAL, 8MM | 4 |
| 17 | 91052K23903 | BEARING, RADIAL BALL, 6301U (NEI) | 2 |
| 18 | 91052KWWA81 | BEARING, RADIAL BALL, 6301U (SKF) | 2 |
| 19 | 91053KWW642 | BEARING, RADIAL BALL, 6301U (FAG) | 2 |
| 20 | 91081KYJ711 | BEARING, RADIAL BALL, 6203UU (NEI) | 1 |
| 21 | 91251KGH901 | DUST SEAL, 27X40X4.5(ARAI) | 1 |
| 22 | 91304704000 | O-RING, 42MM | 1 |
| 23 | 94001060000S | NUT, HEX., 6MM | 1 |
| 24 | 9410106000 | WASHER, PLAIN, 6MM | 1 |
