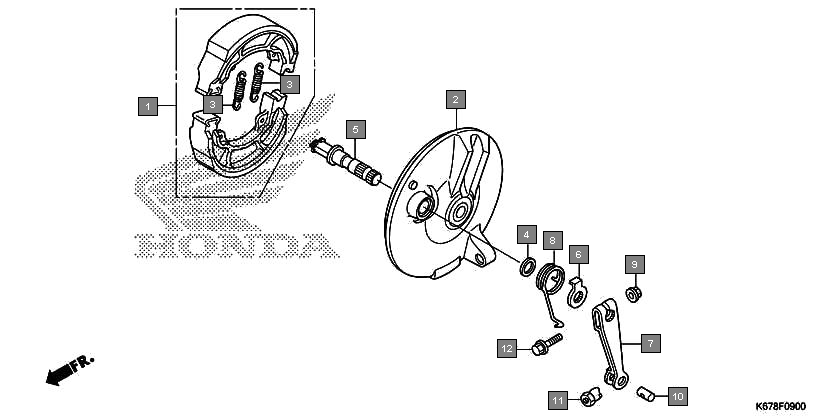

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06430KVTD10 | SHOE SET, BRAKE(ASK) | 1 |
2 | 06430KTN700 | SHOE SET, BRAKE(JB) | 1 |
3 | 45100K67900ZA | PANEL COMP., FR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 |
4 | 45133KPL900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 |
5 | 45134250000 | DUST SEAL, BRAKE CAM | 1 |
6 | 45141KTC900 | CAM, FR. BRAKE | 1 |
7 | 45410K23900 | ARM, FR. BRAKE | 1 |
8 | 45145096650 | INDICATOR, FR. BRAKE | 1 |
9 | 45435KPL900 | SPRING, BRAKE ARM RETURN | 1 |
10 | 9405006000 | NUT, FLANGE, 6MM | 1 |
11 | 9501532001 | JOINT B, BRAKE ARM | 1 |
12 | 9501542000 | NUT B, BRAKE ROD ADJUSTING | 1 |
13 | 957010603200 | BOLT, FLANGE, 6X32 | 1 |
14 | 957020603200 | BOLT, FLANGE, 6X32 | 1 |
