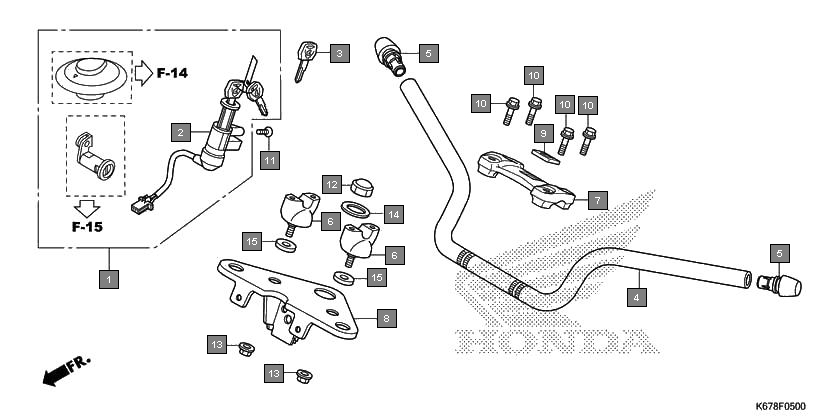

Motorcycles CB Shine SP CBF125MH Frame Handle pipe/top bridge
Ref.No. Part No. Description Oty
1 35010KTED01 KEY SET 1
2 35100KTE601 SWITCH ASSY., COMBINATION & LOCK 1
3 35121KSP910 KEY, BLANK 1
4 53100KTEA01 PIPE, STEERING HANDLE 1
5 53105KRC900 END, STEERING HANDLE 2
6 53130KTE910 HOLDER, HANDLE UNDER 2
7 53131KWF900ZA HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC 1
8 53230KTE650ZA BRIDGE COMP., FORK TOP *NH1* BLACK 1
9 86150KWS601 EMBLEM, PRODUCT(SJS) 1
10 90117383000 BOLT, FLANGE, 6X28 4
11 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
12 90304KSP900 NUT, STEERING STEM 1
13 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
14 90503KSP900 WASHER, STEERING STEM 1
15 90521427770 WASHER, 10.3MM 2
