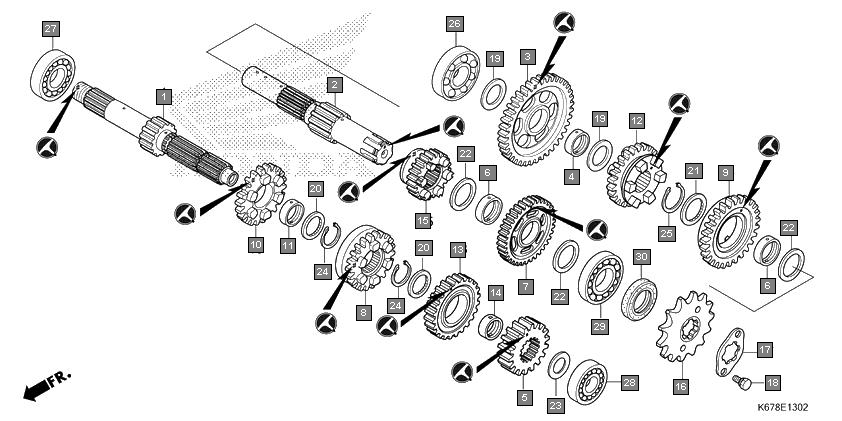

Motorcycles CB Shine SP CBF125MH Engine Transmission(cbf125mh/j) (quitan)
Ref.No. Part No. Description Oty
1 23210K67930 MAINSHAFT COMP., TRANSMISSION (12T) 1
2 23220K67930 COUNTERSHAFT COMP. 1
3 23421K67930 GEAR, COUNTERSHAFT FIRST(41T) 1
4 23427KRM840 BUSH, 17X20.5X8.0 1
5 23431K67930 GEAR, MAINSHAFT SECOND(18T) 1
6 23432KRM840 BUSH, 20MM 2
7 23441K67930 GEAR, COUNTERSHAFT SECOND(35T) 1
8 23451K67930 GEAR, MAINSHAFT THIRD(20T) 1
9 23461K67930 GEAR, COUNTERSHAFT THIRD(27T) 1
10 23471K67930 GEAR, MAINSHAFT FOURTH(25T) 1
11 23472KTT900 BUSH, 17MM 1
12 23481K67930 GEAR, COUNTERSHAFT FOURTH(28T) 1
13 23491K67930 GEAR, MAINSHAFT FIFTH(24T) 1
14 23492KTT900 COLLAR, SPLINE, 17X20X11 1
15 23501K67930 GEAR, COUNTERSHAFT FIFTH(23T) 1
16 23801KTE910 SPROCKET, DRIVE(14T) 1
17 23811KR3600 PLATE A2, FIXING 1
18 90084041000 BOLT, DRIVE SPROCKET FIXING 2
19 90452GB4770 WASHER, THRUST, 17MM 2
20 90452KTT900 WASHER, SPLINE, 17X23X1.6 2
21 90453KTT900 WASHER, SPLINE, 20MM 1
22 90454KPS900 WASHER B, THRUST, 20MM 3
23 90456KTT900 WASHER, THRUST, 12MM 1
24 90603KRME70 CIRCLIP, 17MM 2
25 90605KVS900 SET RING, 20MM 1
26 91003KSP910 BEARING, RADIAL BALL, 17X42X12 1
27 91004KTN900 BEARING, RADIAL BALL, 17X40X12 1
28 91005KTN900 BEARING, RADIAL BALL, 12X32X10 1
29 91006KTN900 BEARING, RADIAL BALL, 20X47X14 1
30 91216KSP911 OIL SEAL, 20X34X7(ARAI) 1
