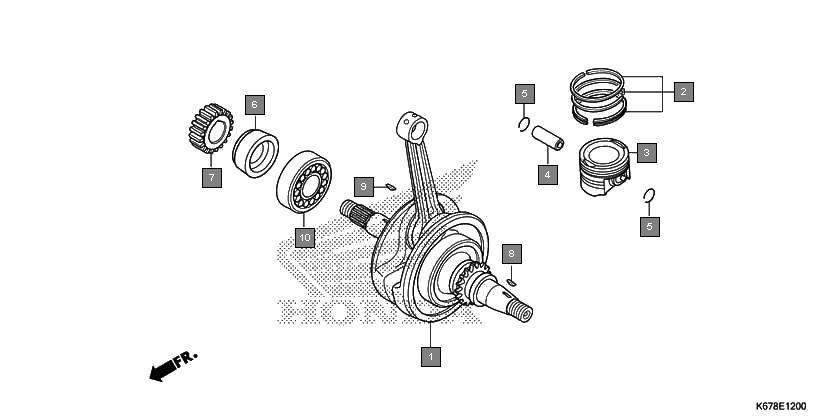

Motorcycles CB Shine SP CBF125MH Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13000KTE910 CRANKSHAFT COMP. 1
2 13011KTE305 RING SET, PISTON(STD.) (TEIKOKU) 1
3 13011KVX600 RING SET, PISTON(STD.)(RIKEN) 1
4 13021KTE305 RING SET, PISTON(0.25) (TEIKOKU) 1
5 13021KVX600 RING SET, PISTON(0.25)(RIKEN) 1
6 13031KTE305 RING SET, PISTON(0.50) (TEIKOKU) 1
7 13031KVX600 RING SET, PISTON(0.50)(RIKEN) 1
8 13041KTE305 RING SET, PISTON(0.75) (TEIKOKU) 1
9 13041KVX600 RING SET, PISTON(0.75)(RIKEN) 1
10 13051KTE305 RING SET, PISTON(1.00) (TEIKOKU) 1
11 13051KVX600 RING SET, PISTON(1.00)(RIKEN) 1
12 13101KTE910 PISTON(STD.) 1
13 13102KTE305 PISTON(0.25) 1
14 13103KTE305 PISTON(0.50) 1
15 13104KTE305 PISTON(0.75) 1
16 13105KTE305 PISTON(1.00) 1
17 13111KTE910 PIN, PISTON 1
18 13115GN5910 CLIP, PISTON PIN, 13MM 2
19 13412KTE910 COLLAR, R. CRANKSHAFT 1
20 23121KRM840 GEAR, PRIMARY DRIVE(20T) 1
21 90741KFB000 KEY, WOODRUFF, 4MM 1
22 90741KGH900 KEY, WOODRUFF, 4MM 1
23 91001KSP913 BEARING, ROLLER, 30X58X17(FAG) 1
24 91001KTN900 BEARING, ROLLER, 30X58X17 1
