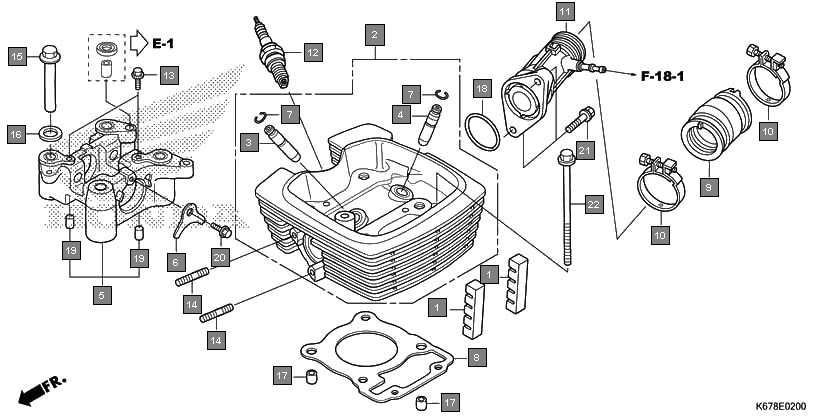

Motorcycles CB Shine SP CBF125MH Engine Cylinder head
Ref.No. Part No. Description Oty
1 12195KTE910 RUBBER, INSERT 2
2 12200KTED00 HEAD COMP., CYLINDER 1
3 12204KRM305 GUIDE, VALVE(O.S.)(EXHAUST SIDE) 1
4 12205KSP305 GUIDE, IN. VALVE(O.S.) 1
5 12210KTE910 HOLDER COMP., CAMSHAFT 1
6 12212KRM840 PLATE, STOPPER 1
7 12213KSP910 CLIP, VALVE GUIDE 2
8 12251KTE911 GASKET, CYLINDER HEAD (NIPPON LEAKLESS) 1
9 16210KTE910 INSULATOR, CARBURETOR 1
10 16217KTE910 BAND, INSULATOR 2
11 17110KTE910 PIPE COMP., INLET 1
12 31906KTE911 PLUG, SPARK(UR6DC) 1
13 31916KRM841 PLUG, SPARK(CPR8EA-9)(NGK) 1
14 31916KTE910 PLUG, SPARK(UR5DC) 1
15 31917KPH901 PLUG, SPARK(CPR7EA-9)(NGK) 1
16 90002KRM840 BOLT, FLANGE, 5X14 2
17 90035KRM840 BOLT, STUD, 8X22 2
18 90306KRM840 NUT, CYLINDER HEAD 4
19 90404KPTA00 WASHER, PLAIN, 12MM 4
20 90703KRM840 DOWEL PIN, 10X12 2
21 91304KRM840 O-RING, 33.5X3.0 1
22 9430306100 DOWEL PIN, 6X10 2
23 957010601400 BOLT, FLANGE, 6X14 1
24 957010602500 BOLT, FLANGE, 6X25 2
25 958010610500 BOLT, FLANGE, 6X105 2
