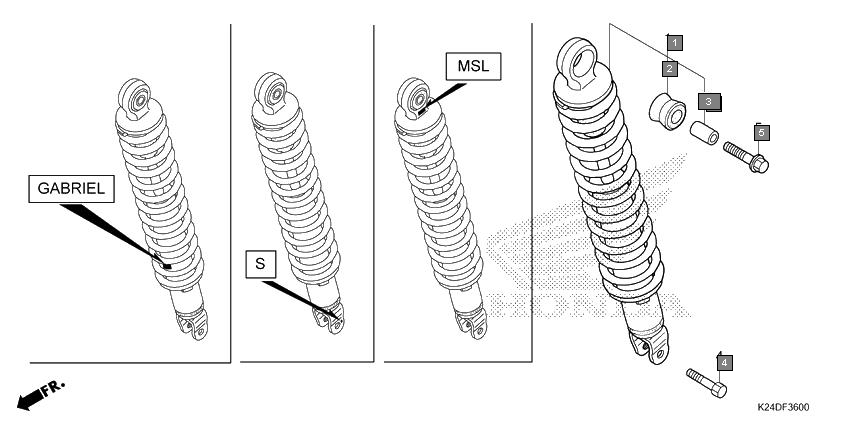

Scooters Activa125 SCV125H Frame Rear cushion(scv125h)
Ref.No. Part No. Description Oty
1 52400K24G01 CUSHION ASSY., RR.(SHOWA) (S) 1
2 52400K24G02 CUSHION ASSY., RR.(GABRIEL) 1
3 52400KWP901 CUSHION ASSY., RR.(SHOWA)(MSL) 1
4 52489KWS901 BUSH, RUBBER(GABRIEL) 1
5 52485088901 BUSH, RR. CUSHION RUBBER(SHOWA) 1
6 52485GW3980 BUSH, RUBBER(SHOWA)(S) 1
7 52487KWS901 COLLAR, RUBBER BUSH(GABRIEL) 1
8 52486GA7003 COLLAR, RUBBER BUSH(SHOWA)(MSL) 1
9 92201080320A BOLT, HEX., 8X32 1
10 958011003500 BOLT, FLANGE, 10X35 1
