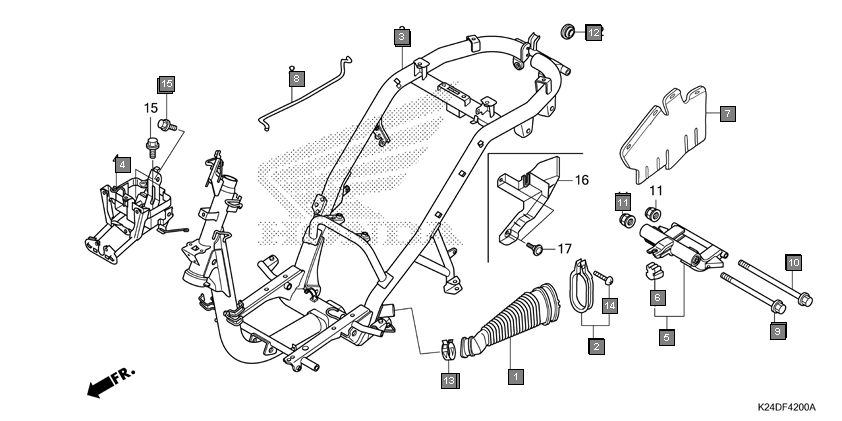

Scooters Activa125 SCV125H Frame Frame body
Ref.No. Part No. Description Oty
1 11345K24G00 DUCT, L. COVER 1
2 11346KCW870 BAND, L. COVER DUCT 1
3 50100K24P20ZZ BODY COMP., FRAME 1
4 50310K24P20ZZ STAY COMP., FR. COVER 1
5 50350K24G00 LINK ASSY., ENGINE HANGER 1
6 50352GW0730 RUBBER, LINK STOPPER 1
7 80102KWP900 PLATE, FRAME BODY SPLASH GUARD 1
8 81256KWPD00 ROD, BODY OPENER 1
9 90105KJ9000 BOLT, FLANGE, 10X210 1
10 90106GCC000 BOLT, FLANGE, 10X238 1
11 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
12 90862KWPG00 PLUG, END 1
13 91405KPL900 CLAMP, TUBE(D29) 1
14 93500040250G SCREW, PAN, 4X25 1
15 957010601208 BOLT, FLANGE, 6X12 3
