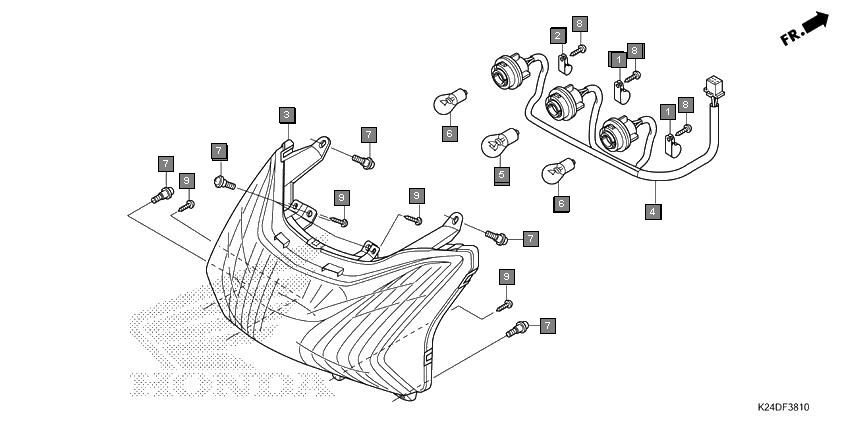

Scooters Activa125 SCV125H Frame Rear combination light
Ref.No. Part No. Description Oty
1 32920KVT901 CLIP A, HARNESS 2
2 32930KVT901 CLIP B, HARNESS 1
3 33710K24901 LIGHT UNIT, RR. COMBINATION 1
4 33715K24901 SOCKET COMP. 1
5 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
6 34930KWA930 BULB, WINKER(12V 10W)(AMBER) 2
7 91509GE2760 SCREW, PAN, 5X11.5 6
8 9390134420 SCREW, TAPPING, 4X16 3
9 9390334420 SCREW, TAPPING, 4X16 4
