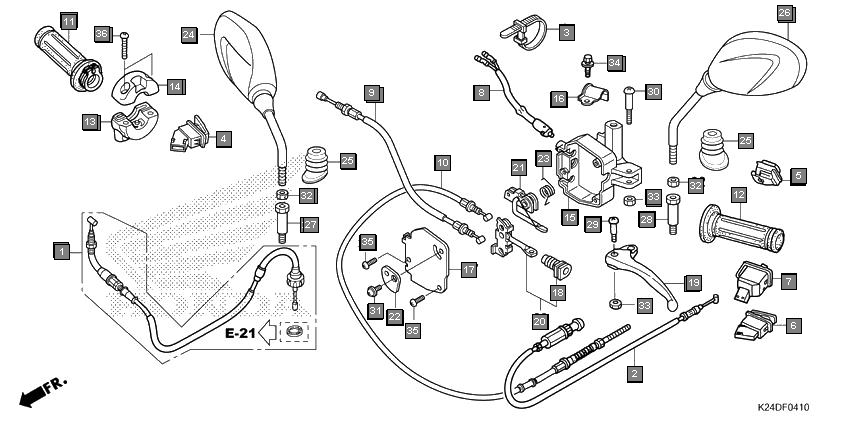

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06179K24900 | CABLE SET, THROTTLE | 1 |
| 2 | 17950KWPF00 | CABLE COMP., CHOKE | 1 |
| 3 | 32161KSP920 | BAND B1, WIRE | 1 |
| 4 | 35160KWP901 | SWITCH UNIT, STARTER | 1 |
| 5 | 35170KPL842 | SWITCH UNIT, DIMMER(JAY USHIN) | 1 |
| 6 | 35170KPL901 | SWITCH UNIT, DIMMER(MINDA) | 1 |
| 7 | 35180KWP901 | SWITCH UNIT, HORN | 1 |
| 8 | 35200KWP901 | SWITCH UNIT, WINKER(MINDA) | 1 |
| 9 | 35340KWP911 | SWITCH ASSY., FR. STOP | 1 |
| 10 | 43440K24G11 | CABLE COMP., FR. BRAKE CONNECTING(HI-LEX) | 1 |
| 11 | 43450K24G01 | CABLE COMP., RR. BRAKE(HI-LEX) | 1 |
| 12 | 53146KRB901 | GRIP COMP., THROTTLE | 1 |
| 13 | 53166KPL901 | GRIP, L. HANDLE | 1 |
| 14 | 53167GAHA00 | HOUSING, UNDER THROTTLE | 1 |
| 15 | 53168GAHA00 | HOUSING, UPPER THROTTLE | 1 |
| 16 | 53172KWP910 | BRACKET, L. BRAKE LEVER | 1 |
| 17 | 53173K24G00 | BAND, HANDLE BRACKET | 1 |
| 18 | 53173KWP910 | COVER, L. BRAKE LEVER BRACKET | 1 |
| 19 | 53176GBL870 | BOOT, BRAKE LEVER ROD | 1 |
| 20 | 53178KWPD00 | LEVER, L. STEERING HANDLE | 1 |
| 21 | 53180KWP910 | EQUALIZER COMP. | 1 |
| 22 | 53185KWP910 | ARM COMP., RR. BRAKE LOCK | 1 |
| 23 | 53186GBL870 | COVER, RR. BRAKE LOCK LEVER | 1 |
| 24 | 53186KWP910 | SPRING, BRAKE LOCK ARM RETURN | 1 |
| 25 | 88110KWPF01 | MIRROR ASSY., R. BACK | 1 |
| 26 | 88113K24900 | CAP, MIRROR LOCK NUT | 2 |
| 27 | 88120KWPF01 | MIRROR ASSY., L. BACK | 1 |
| 28 | 90103K24910 | BOLT, ADAPTER, 10MM | 1 |
| 29 | 90103KVT940 | BOLT, ADAPTER, 8MM | 1 |
| 30 | 90115KPL900 | SCREW, HANDLE LEVER PIVOT | 1 |
| 31 | 90115KRP980 | SCREW, HANDLE LEVER PIVOT | 1 |
| 32 | 90118KWP910 | SCREW, PAN, 5X13 | 1 |
| 33 | 90201KV3680 | NUT, HEX., 8MM(L.H.) | 2 |
| 34 | 90304KPL900 | NUT, HEX., 5MM | 2 |
| 35 | 934010602000 | BOLT-WASHER, 6X20 | 1 |
| 36 | 93500050121H | SCREW, PAN, 5X12 | 2 |
| 37 | 93500050220A | SCREW, PAN, 5X22 | 2 |
