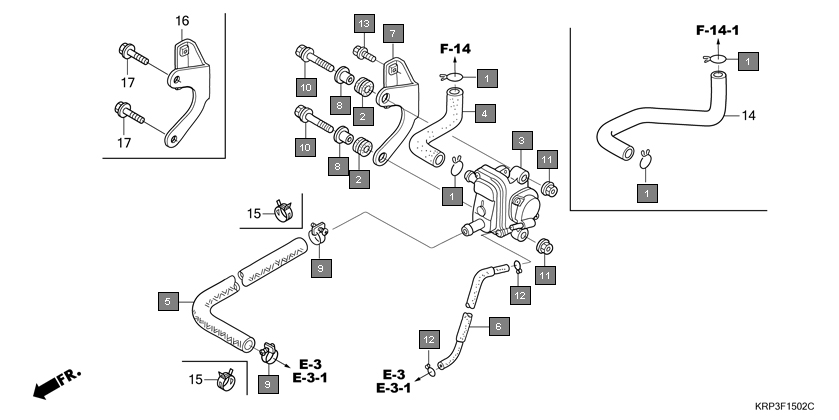

Scooters Aviator SCV110GD Frame Air suction valve(2)
Ref.No. Part No. Description Oty
1 17316611000 CLIP, BREATHER TUBE 2
2 18600KWP901 VALVE ASSY., AIR SUCTION 1
3 18652KZK900 HOSE, AIR SUCTION VALVE 1
4 18653KWP900 TUBE, AIR SUCTION VALVE 1
5 9405006000 NUT, FLANGE, 6MM 2
6 9500202070 CLIP, TUBE(B7) 2
7 957010601208 BOLT, FLANGE, 6X12 2
8 957020601208 BOLT, FLANGE, 6X12 2
9 18651KVT900 TUBE, AIR INJECTION CONTROL VALVE 1
10 90682SA0670 CLAMP, CANISTER HOSE 2
11 50141KWPD00 STAY, AIR SUCTION VALVE 1
12 957010602008 BOLT, FLANGE, 6X20 2
13 957020602008 BOLT, FLANGE, 6X20 2
