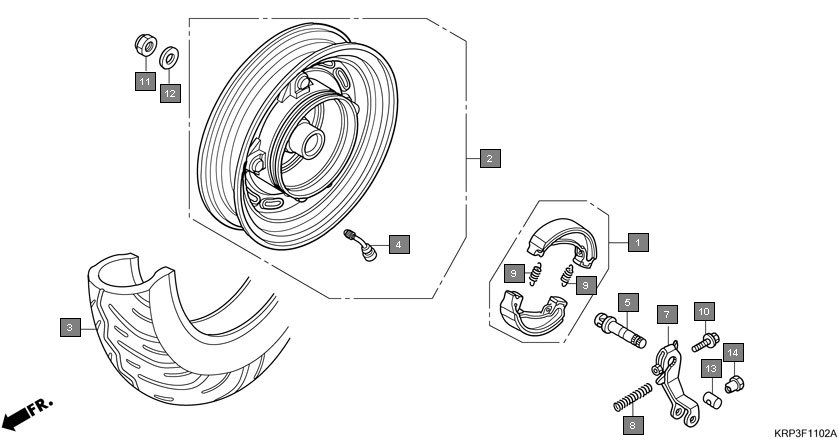

Scooters Aviator SCV110GD Frame Rear wheel(3)
Ref.No. Part No. Description Oty
1 06430KWP900 SHOE SET, BRAKE(JB) 1
2 06430KWPD00 SHOE SET, BRAKE(ASK) 1
3 42650KWPD00 WHEEL SUB ASSY., RR. 1
4 42711KWPD01 TIRE(DUNLOP)(90/100-10 53J) 1
5 42711KZK901 TIRE(MRF)(90/100-10M/C 53J) 1
6 42711KZK902 TIRE(TVS)(90/100-10M/C 53J) 1
7 42753KZK901 VALVE, RIM(TRITON) 1
8 45141KWPD00 CAM, FR. BRAKE (RR.) 1
9 43410KWP900 ARM, RR. BRAKE 1
10 43472KPL900 SPRING, RR. BRAKE ARM 1
11 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
12 90112KPL900 BOLT, FLANGE, 6X30 1
13 90305KWP901 NUT, HEX., 16MM 1
14 90501KPL900 WASHER, 16MM 1
15 9501532001 JOINT B, BRAKE ARM 1
16 9501542000 NUT B, BRAKE ROD ADJUSTING 1
