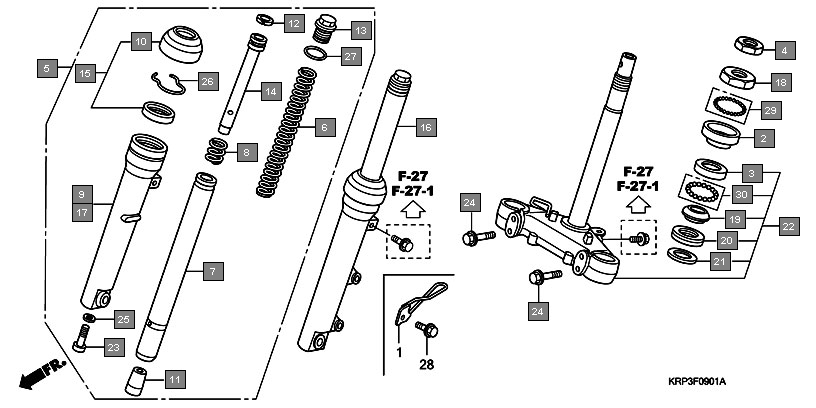

Scooters Aviator SCV110GD Frame Steering stem/front fork(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 45160KVT940 GUIDE COMP., BRAKE CABLE 1
2 50301KEM900 RACE, STEERING UPPER BALL 1
3 50302268010 RACE, STEERING BOTTOM BALL 1
4 50302KWPD00 RACE, STEERING BOTTOM BALL 1
5 50306KPL900 NUT, STEERING STEM LOCK 1
6 51400KVT901 FORK ASSY., R. FR.(SHOWA) 1
7 51401KVT911 SPRING, FR. FORK 2
8 51410KVT911 PIPE COMP., FR. FORK 2
9 51412KSP901 SPRING, REBOUND 2
10 51420KVT901 CASE, R. FR. BOTTOM 1
11 51425KST901 SEAL, DUST 2
12 51432KFN851 PIECE, OIL LOCK 2
13 51437KTC901 RING, PISTON 2
14 51454KVT911 BOLT, FR. FORK 2
15 51470KVT911 PIPE, SEAT 2
16 51490KST305 SEAL SET, FR. FORK 2
17 51500KVT901 FORK ASSY., L. FR.(SHOWA) 1
18 51520KVT901 CASE, L. FR. BOTTOM 1
19 53211KEM900 RACE, STEERING TOP CONE 1
20 53212250010 RACE, STEERING BOTTOM CONE 1
21 53212KWPD00 RACE, STEERING BOTTOM CONE 1
22 53214250000 DUST SEAL, STEERING HEAD 1
23 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
24 53219KVT900 STEM SUB ASSY., STEERING 1
25 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
26 90101KVTD00 BOLT, FLANGE, 10X42 4
27 90544439930 PACKING(SHOWA) 2
28 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
29 91356KAG901 O-RING(SHOWA) 2
30 957010601200 BOLT, FLANGE, 6X12 1
31 957020601200 BOLT, FLANGE, 6X12 1
32 06530KEMP00 BALL SET, STEEL, #5X26 1
33 06531KEMP00 BALL SET, STEEL, #8X19 1
