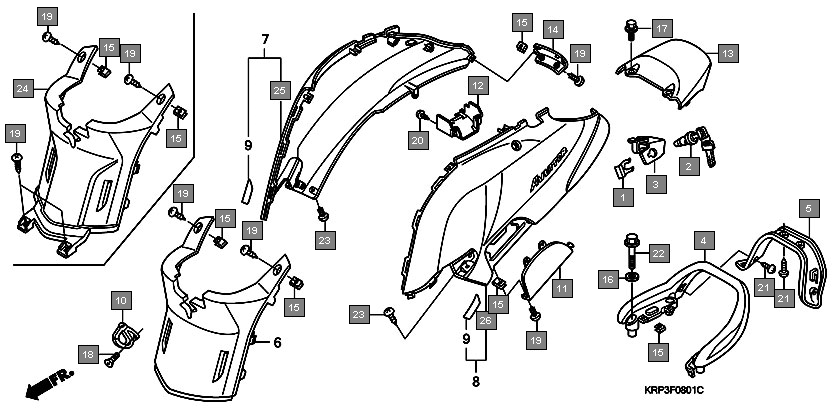

Scooters Aviator SCV110GD Frame Body cover(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 75582KCW870 SPRING, LOCK KEY SETTING 1
2 77239KPL841 KEY, SEAT LOCK 1
3 77241KVT900 STAY, SEAT LOCK 1
4 77300KVT900ZA GRIP, RR. *NH35M* CLOUD SILVER METALLIC 1
5 77301KVT900 COVER, RR. GRIP 1
6 83508KPL900 HOOK, LUGGAGE 1
7 83520KVT900ZB COVER, MAINTENANCE AIR CLEANER *NHB05P* PEARL IGNEOUS BLACK 1
8 83520KVT900ZE COVER, MAINTENANCE AIR CLEANER *R329M* REBEL RED METALLIC 1
9 83520KVT900ZH COVER, MAINTENANCE AIR CLEANER *NHA66P* PEARL SUNBEAM WHITE 1
10 83520KVT900ZJ COVER, MAINTENANCE AIR CLEANER *YR258M* ROYAL GOLD METALLIC 1
11 83530KVT900 COVER, SEAT LOCK CABLE 1
12 83700KVT900ZB COVER SET, RR. CENTER(WL) *NHB05P* PEARL IGNEOUS BLACK 1
13 83700KVT900ZE COVER SET, RR. CENTER(WL) *R329M* REBEL RED METALLIC 1
14 83700KVT900ZH COVER SET, RR. CENTER(WL) *NHA66P* PEARL SUNBEAM WHITE 1
15 83700KVT900ZJ COVER SET, RR. CENTER(WL) *YR258M* ROYAL GOLD METALLIC 1
16 83751KVT900ZB COVER, RR. CENTER LOWER *NHB05P* PEARL IGNEOUS BLACK 1
17 83751KVT900ZE COVER, RR. CENTER LOWER *R329M* REBEL RED METALLIC 1
18 83751KVT900ZH COVER, RR. CENTER LOWER *NHA66P* PEARL SUNBEAM WHITE 1
19 83751KVT900ZJ COVER, RR. CENTER LOWER *YR258M* ROYAL GOLD METALLIC 1
20 90344KRP900 NUT, CLIP, 5MM 11
21 90505KY4900 WASHER, PLAIN, 8MM 4
22 934040601207 BOLT-WASHER, 6X12 2
23 93600050160G SCREW, FLAT, 5X16 2
24 9390325380 SCREW, TAPPING, 5X16 5
25 9390334320 SCREW, TAPPING, 4X12 2
26 9390334380 SCREW, TAPPING, 4X12 4
27 957010804000 BOLT, FLANGE, 8X40 4
28 957020804000 BOLT, FLANGE, 8X40 4
29 91509GE2760 SCREW, PAN, 5X11.5 4
30 80151KVT940ZA COVER, CENTER *NH1* BLACK 1
31 83100KVTD00ZA COVER SET, R. BODY(WL) *YR258M* ROYAL GOLD METALLIC 1
32 83100KVTD00ZF COVER SET, R. BODY(WL) *R329M* REBEL RED METALLIC 1
33 83100KVTD00ZG COVER SET, R. BODY(WL) *NHB05P* PEARL IGNEOUS BLACK 1
34 83100KVTD00ZH COVER SET, R. BODY(WL) *NHA66P* PEARL SUNBEAM WHITE 1
35 83200KVTD00ZE COVER SET, L. BODY(WL) *YR258M* ROYAL GOLD METALLIC 1
36 83200KVTD00ZF COVER SET, L. BODY(WL) *R329M* REBEL RED METALLIC 1
37 83200KVTD00ZG COVER SET, L. BODY(WL) *NHB05P* PEARL IGNEOUS BLACK 1
38 83200KVTD00ZH COVER SET, L. BODY(WL) *NHA66P* PEARL SUNBEAM WHITE 1
