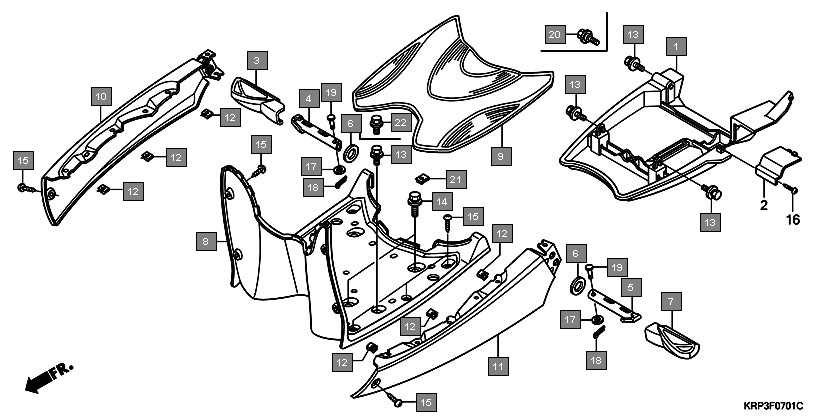

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 50621KVTD00 | COVER, UNDER | 1 |
| 2 | 50710KVT900 | RUBBER, R. PILLION STEP | 1 |
| 3 | 50711KVT900 | BAR, R. PILLION STEP | 1 |
| 4 | 50712KVT900 | BAR, L. PILLION STEP | 1 |
| 5 | 50715KE8000 | PLATE, PILLION STEP SIDE | 2 |
| 6 | 50720KVT900 | RUBBER, L. PILLION STEP | 1 |
| 7 | 64310KVT940ZA | STEP, FLOOR *NH1* BLACK | 1 |
| 8 | 64315KVT940 | MAT, FLOOR | 1 |
| 9 | 64320KVTD00ZZ | COVER COMP., R. SIDE | 1 |
| 10 | 64330KVTD00ZZ | COVER COMP., L. SIDE | 1 |
| 11 | 90344KRB900 | NUT, CLIP, 5MM | 6 |
| 12 | 934040601208 | BOLT-WASHER, 6X12 | 8 |
| 13 | 934040602008 | BOLT-WASHER, 6X20 | 4 |
| 14 | 9390325380 | SCREW, TAPPING, 5X16 | 12 |
| 15 | 9410106000 | WASHER, PLAIN, 6MM | 2 |
| 16 | 9420116150 | PIN, SPLIT, 1.6X15 | 2 |
| 17 | 9501581000 | PIN A, PILLION STEP | 2 |
| 18 | 90111KPL900 | BOLT, INNER COVER | 2 |
| 19 | 90344KRP900 | NUT, CLIP, 5MM | 2 |
| 20 | 957010601208 | BOLT, FLANGE, 6X12 | 4 |
| 21 | 957020601208 | BOLT, FLANGE, 6X12 | 4 |
