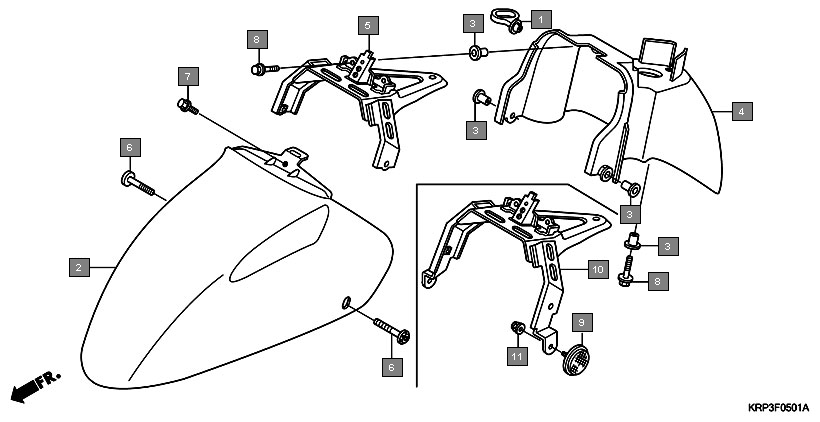

Scooters Aviator SCV110GD Frame Front fender(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 61100KVTD00ZZ FENDER A, FR. 1
2 61103KRY900 COLLAR A, FR. FENDER 5
3 61120KVT940ZA FENDER B, FR. *NH1* BLACK 1
4 61300KVT900 STAY COMP., FR. FENDER 1
5 90113KVT901 BOLT, SPECIAL HEX., 6X20 2
6 957010601208 BOLT, FLANGE, 6X12 1
7 957020601208 BOLT, FLANGE, 6X12 1
8 957010602008 BOLT, FLANGE, 6X20 3
9 957020602008 BOLT, FLANGE, 6X20 3
10 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
11 61300KVTD20 STAY COMP., FR. FENDER 1
12 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
