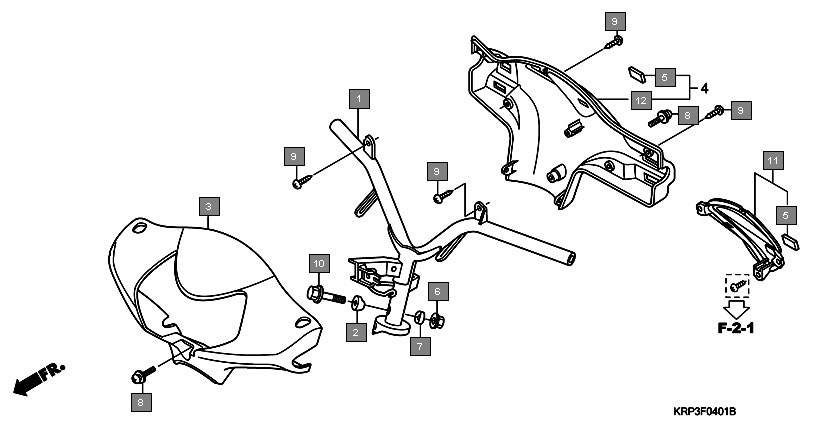

Scooters Aviator SCV110GD Frame Steering handle/handle cover(2)
Ref.No. Part No. Description Oty
1 53100KVT940 HANDLE COMP., STEERING 1
2 53124KCW870 COLLAR, HANDLE SETTING 1
3 53205KVT940ZB COVER, FR. HANDLE *NHB05P* PEARL IGNEOUS BLACK 1
4 53205KVT940ZD COVER, FR. HANDLE *R329M* REBEL RED METALLIC 1
5 53205KVT940ZG COVER, FR. HANDLE *NHA66P* PEARL SUNBEAM WHITE 1
6 53205KVT940ZH COVER, FR. HANDLE *YR258M* ROYAL GOLD METALLIC 1
7 53250KVT950ZA COVER COMP., RR. HANDLE *NH1* BLACK 1
8 86150KWS601 EMBLEM, PRODUCT(SJS) 1
9 90304KCS920 NUT, U, 10MM 1
10 90304KGH901 NUT, U, 10MM 1
11 90502KVT900 COLLAR B, HANDLE SETTING 1
12 938910501607 SCREW-WASHER, 5X16 2
13 9390334380 SCREW, TAPPING, 4X12 6
14 958011005508 BOLT, FLANGE, 10X55 1
15 958021005508 BOLT, FLANGE, 10X55 1
