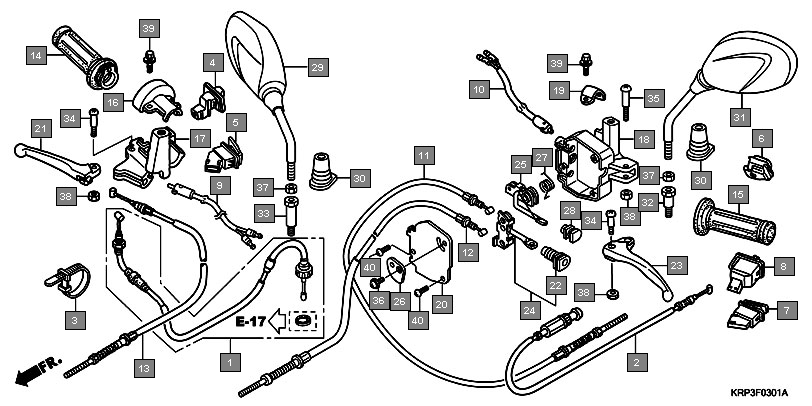

Scooters Aviator SCV110GD Frame Handle lever/switch/cable(2)
Ref.No. Part No. Description Oty
1 06179KVTD00 CABLE SET, THROTTLE 1
2 17950KVT940 CABLE COMP., CHOKE 1
3 32161KSP920 BAND B1, WIRE 1
4 35150KVT941 SWITCH UNIT, LIGHTING 1
5 35150KZK901 SWITCH UNIT, LIGHTING(JAY USHIN) 1
6 35160KWP901 SWITCH UNIT, STARTER 1
7 35170KPL842 SWITCH UNIT, DIMMER(JAY USHIN) 1
8 35170KPL901 SWITCH UNIT, DIMMER(MINDA) 1
9 35180KWP901 SWITCH UNIT, HORN 1
10 35200KWP901 SWITCH UNIT, WINKER(MINDA) 1
11 35340KPL841 SWITCH ASSY., FR. STOP 1
12 35340KWP911 SWITCH ASSY., FR. STOP 1
13 43450KVT940 CABLE COMP., RR. BRAKE 1
14 45440KVT940 CABLE COMP., L. FR. BRAKE 1
15 45450KVT940 CABLE COMP., R. FR. BRAKE 1
16 53146KRB901 GRIP COMP., THROTTLE 1
17 53166KPL901 GRIP, L. HANDLE 1
18 53167KPL900 HOUSING, UPPER THROTTLE 1
19 53168KWP900 HOUSING, UNDER THROTTLE 1
20 53172KWP910 BRACKET, L. BRAKE LEVER 1
21 53173KPL900 BAND, HANDLE BRACKET 1
22 53173KWP910 COVER, L. BRAKE LEVER BRACKET 1
23 53175KTP900 LEVER, R. STEERING HANDLE 1
24 53176GBL870 BOOT, BRAKE LEVER ROD 1
25 53178KWP910 LEVER, L. STEERING HANDLE 1
26 53180KWP910 EQUALIZER COMP. 1
27 53185KWP910 ARM COMP., RR. BRAKE LOCK 1
28 53186GBL870 COVER, RR. BRAKE LOCK LEVER 1
29 53186KWP910 SPRING, BRAKE LOCK ARM RETURN 1
30 53189KWP910 STOPPER, EQUALIZER 1
31 88110KWP901 MIRROR ASSY., R. BACK 1
32 88113KRP901 CAP, LOCK NUT 2
33 88120KWP901 MIRROR ASSY., L. BACK 1
34 90102KVT900 BOLT, ADAPTER, 8MM 1
35 90103KVT940 BOLT, ADAPTER, 8MM 1
36 90115KPL900 SCREW, HANDLE LEVER PIVOT 2
37 90115KRP980 SCREW, HANDLE LEVER PIVOT 1
38 90118KWP910 SCREW, PAN, 5X13 1
39 90201KV3680 NUT, HEX., 8MM(L.H.) 2
40 90304KPL900 NUT, HEX., 5MM 3
41 934010602000 BOLT-WASHER, 6X20 2
42 93500050121H SCREW, PAN, 5X12 2
