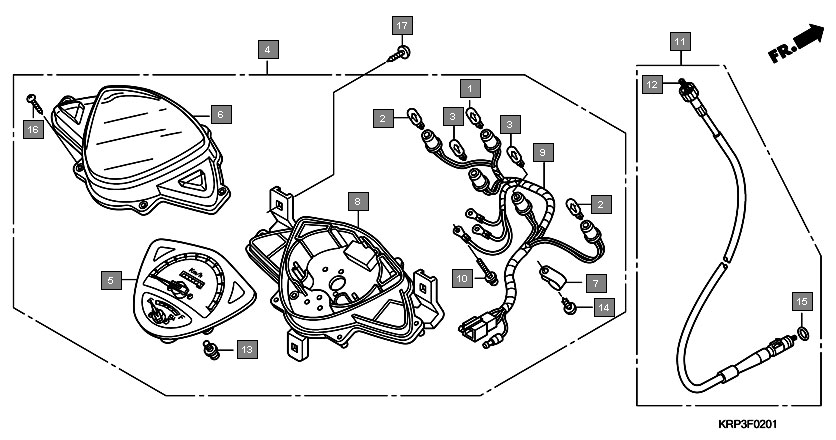

Scooters Aviator SCV110GD Frame Meter(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 1
2 34909KVE900 BULB, WEDGE BASE(T10)(12V 3W) 2
3 34909KVH900 BULB, WEDGE BASE(T10 12V 3.4W) 2
4 37200KVT901 SPEEDOMETER ASSY. 1
5 37210KVT901 SPEEDOMETER COMP. 1
6 37211KVT901 LENS 1
7 37215KS3901 CLAMP 1
8 37220KVT901 CASE COMP. 1
9 37224KVT901 SOCKET COMP. 1
10 37305KE5008 SCREW-WASHER, 3X22 3
11 44830KVT940 CABLE COMP., SPEEDOMETER 1
12 44831KVT900 CABLE, INNER 1
13 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
14 90109MZ5008 SCREW, TAPPING, 4X14 1
15 91352GAZ930 O-RING, 8.5X1.5 1
16 9390322420 SCREW, TAPPING, 3X16 6
17 9390325380 SCREW, TAPPING, 5X16 3
