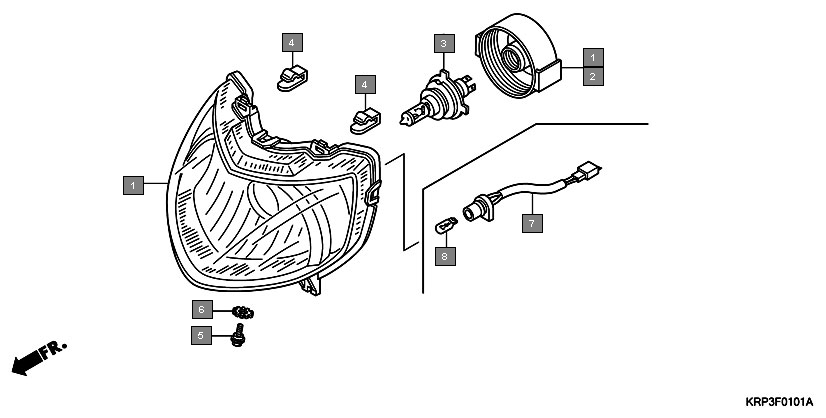

Scooters Aviator SCV110GD Frame Headlight(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 33120KVT901 HEADLIGHT UNIT 1
2 33110KVTD20 HEADLIGHT UNIT(12V 35/35W) 1
3 33126KTP890 COVER, RUBBER 1
4 34901KSP910 BULB, HEADLIGHT(HS1)(12V 35/35W)(PHILIPS) 1
5 34901KTE740 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) 1
6 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
7 53209GAH000 CLIP, HEADLIGHT 2
8 90101KVT900 BOLT, ADJUSTER 1
9 90307GW3980 WASHER, LOCK, 6MM 1
10 33150KWPD10 SOCKET ASSY., POSITION LIGHT 1
11 34903KRP980 BULB, POSITION LIGHT(12V 5W) 1
