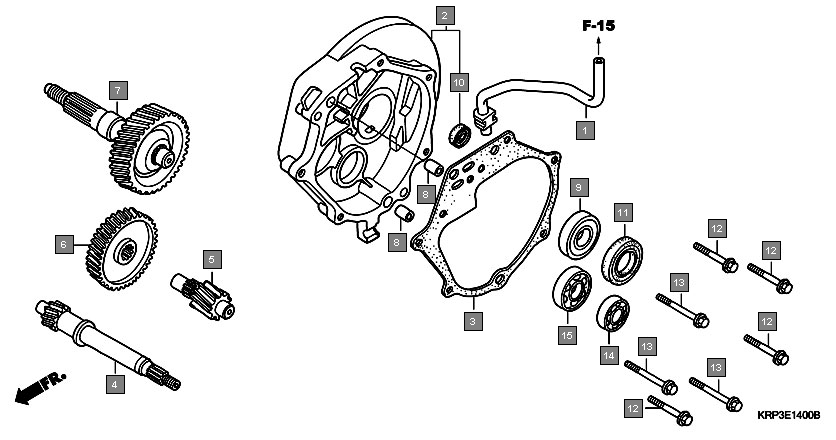

Scooters Aviator SCV110GD Engine Transmission
Ref.No. Part No. Description Oty
1 11220GCC000 TUBE, MISSION BREATHER 1
2 21200KWP900 CASE COMP., TRANSMISSION 1
3 21200KZK900 CASE COMP., MISSION 1
4 21395KWP901 GASKET, TRANSMISSION CASE 1
5 23411KWPD00 DRIVESHAFT(19T) 1
6 23421KWPD00 COUNTERSHAFT(13T) 1
7 23422KWPD00 GEAR, COUNTER(51T) 1
8 23430KWP900 GEAR COMP., FINAL(49T) 1
9 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
10 91008KWPD01 BEARING, RADIAL BALL, 6004UU(NSK) 1
11 91008KWPD02 BEARING, RADIAL BALL, 6004UU(FAG) 1
12 91008KWPD03 BEARING, RADIAL BALL, 6004UU(NEI LTD) 1
13 91203KPL901 OIL SEAL, 14X20X3.2 1
14 91204KWPD01 OIL SEAL, 14X20X3.2(FENNER) 1
15 91225KWPD01 OIL SEAL, 27X42X7 1
16 91225KWPD02 OIL SEAL, 27X42X7(FENNER) 1
17 957010603000 BOLT, FLANGE, 6X30 4
18 957020603000 BOLT, FLANGE, 6X30 4
19 957010604000 BOLT, FLANGE, 6X40 3
20 957020604000 BOLT, FLANGE, 6X40 3
21 91006KWP901 BEARING, RADIAL BALL, 6201(NSK) 1
22 961006301000 BEARING, RADIAL BALL, 6301 1
