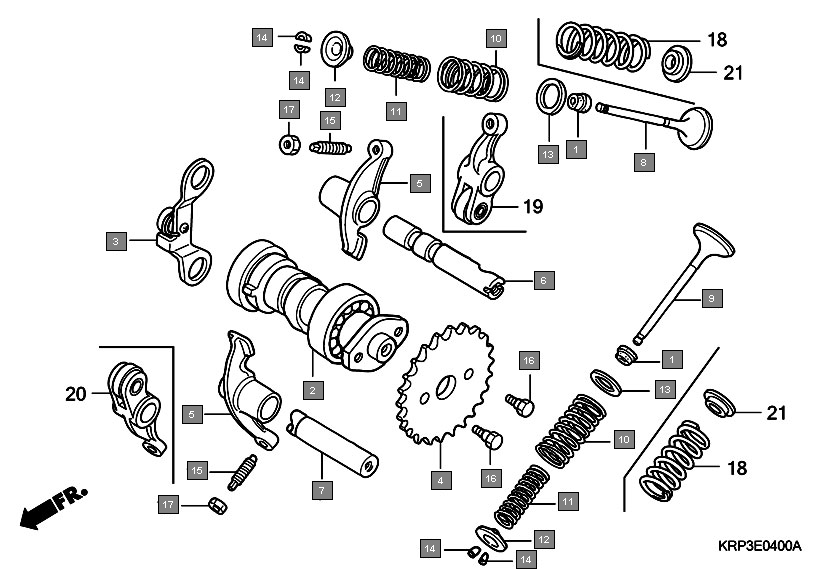

Scooters Aviator SCV110GD Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 12209KWPD01 SEAL, VALVE STEM(SKF) 2
3 14100KWPD00 CAMSHAFT COMP. 1
4 14321KWP900 SPROCKET, CAM(34T) 1
5 14461GCC000 SHAFT, EX. ROCKER ARM (IN./EX.)(INLET SIDE) 1
6 14711KVY900 VALVE, IN. 1
7 14721KVY900 VALVE, EX. 1
8 14771GB4680 RETAINER, VALVE SPRING 2
9 14781KPL900 COTTER, VALVE 4
10 90012KWW740 SCREW, TAPPET ADJUSTING 2
11 90083KRM840 BOLT, KNOCK, 5MM 2
12 90206KPL900 NUT, TAPPET ADJUSTING 2
13 14751KWP900 SPRING, VALVE 2
14 14430KWP900 ARM COMP., IN. VALVE ROCKER 1
15 14440KWP900 ARM COMP., EX. VALVE ROCKER 1
16 14775KWP900 SEAT, VALVE SPRING 2
