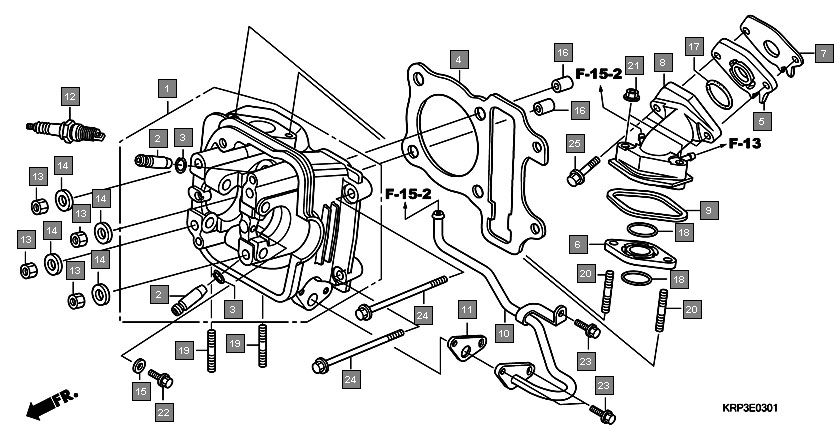

Scooters Aviator SCV110GD Engine Cylinder head(scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 12200KWPD00 HEAD COMP., CYLINDER 1
2 12204KWPP00 GUIDE, VALVE(O.S.) 2
3 12206KPL900 CLIP, VALVE GUIDE 1
4 12251KWPD01 GASKET, CYLINDER HEAD(STD/0.25/0.50) 1
5 12252KWPD00 GASKET, CYLINDER HEAD(0.75/1.00) 1
6 16211KWP900 INSULATOR A, CARBURETOR 1
7 16212KWP900 INSULATOR B, CARBURETOR 1
8 16229KRP601 GASKET A, CARBURETOR INSULATOR 1
9 17110KWPD00 PIPE COMP., IN. 1
10 17113KWP900 RUBBER, IN. PIPE SEAL 1
11 18640KWPD00 PIPE COMP., AIR FEED 1
12 18645KVY900 GASKET, AIR FEED PIPE 1
13 31917KWPD01 PLUG, SPARK(MR7C-9N)(NGK) 1
14 90201GCC000 NUT, HEX., 7MM 4
15 90401GCC000 WASHER, 7.2X16X2.5 4
16 90402KWP900 WASHER, 6MM 1
17 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
18 91304KWP900 O-RING, 25X2.4 1
19 91308GFM900 O-RING, 25.5X1.9 2
20 90004KGF910 BOLT, STUD, 7X17 2
21 92900060350B BOLT, STUD, 6X35 2
22 9405006000 NUT, FLANGE, 6MM 2
23 957010601400 BOLT, FLANGE, 6X14 1
24 957020601400 BOLT, FLANGE, 6X14 1
25 957010601800 BOLT, FLANGE, 6X18 3
26 957020601800 BOLT, FLANGE, 6X18 3
27 957010610000 BOLT, FLANGE, 6X100 2
28 957020610000 BOLT, FLANGE, 6X100 2
29 960010602800 BOLT, FLANGE, 6X28 2
