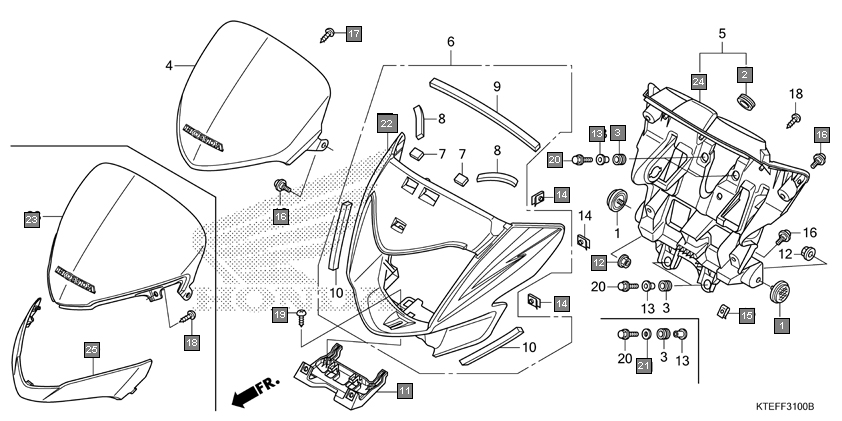

Motorcycles CB Shine CBF125H Frame Front cowl
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 37312KT2000 GROMMET, COMBINATION SWITCH 1
3 61103357000 RUBBER, FR. FENDER MOUNTING 4
4 61220KTE650ZA WINDSCREEN SET(WL) *TYPE1* 1
5 61310KTED00 COVER COMP., HEADLIGHT RR. 1
6 61410KTED00ZB COWL ASSY., FR.(WL)*TYPE6* 1
7 61410KTED00ZE COWL ASSY., FR.(WL)*TYPE3* 1
8 61410KTED00ZF COWL ASSY., FR.(WL)*TYPE2* 1
9 61410KTED00ZC COWL ASSY., FR.(WL)*TYPE5* 1
10 61410KTED00ZA COWL ASSY., FR.(WL)*TYPE7* 1
11 61410KTED00ZD COWL ASSY., FR.(WL)*TYPE4* 1
12 61410KTED00ZG COWL ASSY., FR.(WL)*TYPE1* 1
13 64141KTE650 SPONGE, FR. COWL SHORT CUSHION 2
14 64142KTE650 SPONGE, FR. COWL MIDDLE CUSHION 2
15 64143KTE650 SPONGE, FR. COWL LONG CUSHION 1
16 64144KTE650 SPONGE, HEADLIGHT CUSHION 2
17 64315KTE600 STAY, FR. NUMBER PLATE 1
18 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
19 90310KWS900 COLLAR, FR. COWL 2
20 90320GC3000 NUT, SPRING, 5MM 6
21 90320KTE600 NUT, SPRING, 5MM 2
22 91509GE2760 SCREW, PAN, 5X11.5 6
23 9390324320 SCREW, TAPPING, 4X12 1
24 9390324380 SCREW, TAPPING, 4X12 1
25 9390325220 SCREW, TAPPING, 5X12 2
26 960010602200 BOLT, FLANGE, 6X22 4
27 9410306800 WASHER, PLAIN, 6MM 2
